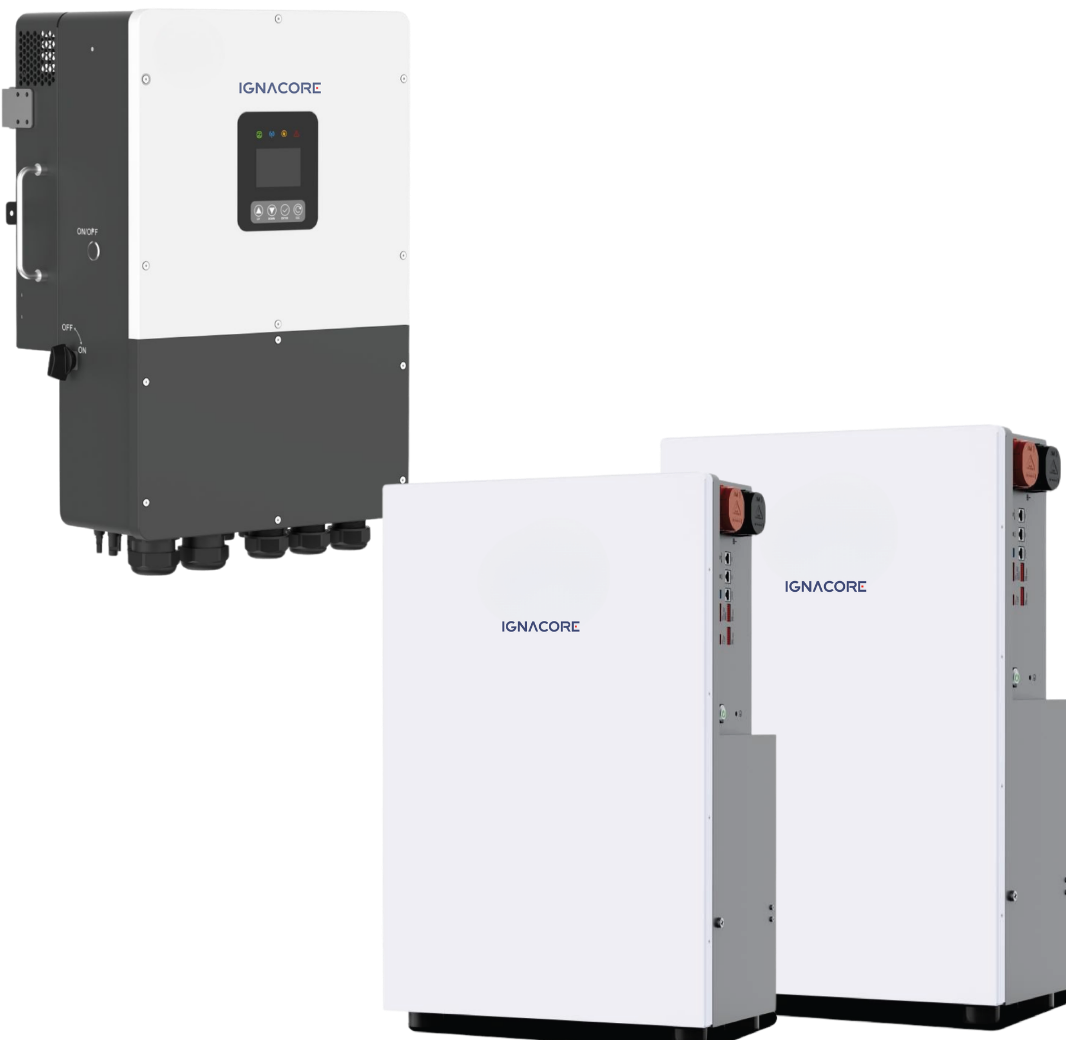

IGNACORE TPLV 24-34 is a 24kW three-phase hybrid energy storage system with a 33.78kWh LiFePO₄ battery, designed for reliable backup and high-power applications. It can support residential, commercial, and light industrial loads, including ACs, refrigerators, pumps, water motors, commercial lifts, workshop tools, and small manufacturing equipment.
Inverter: | Battery Pack: |

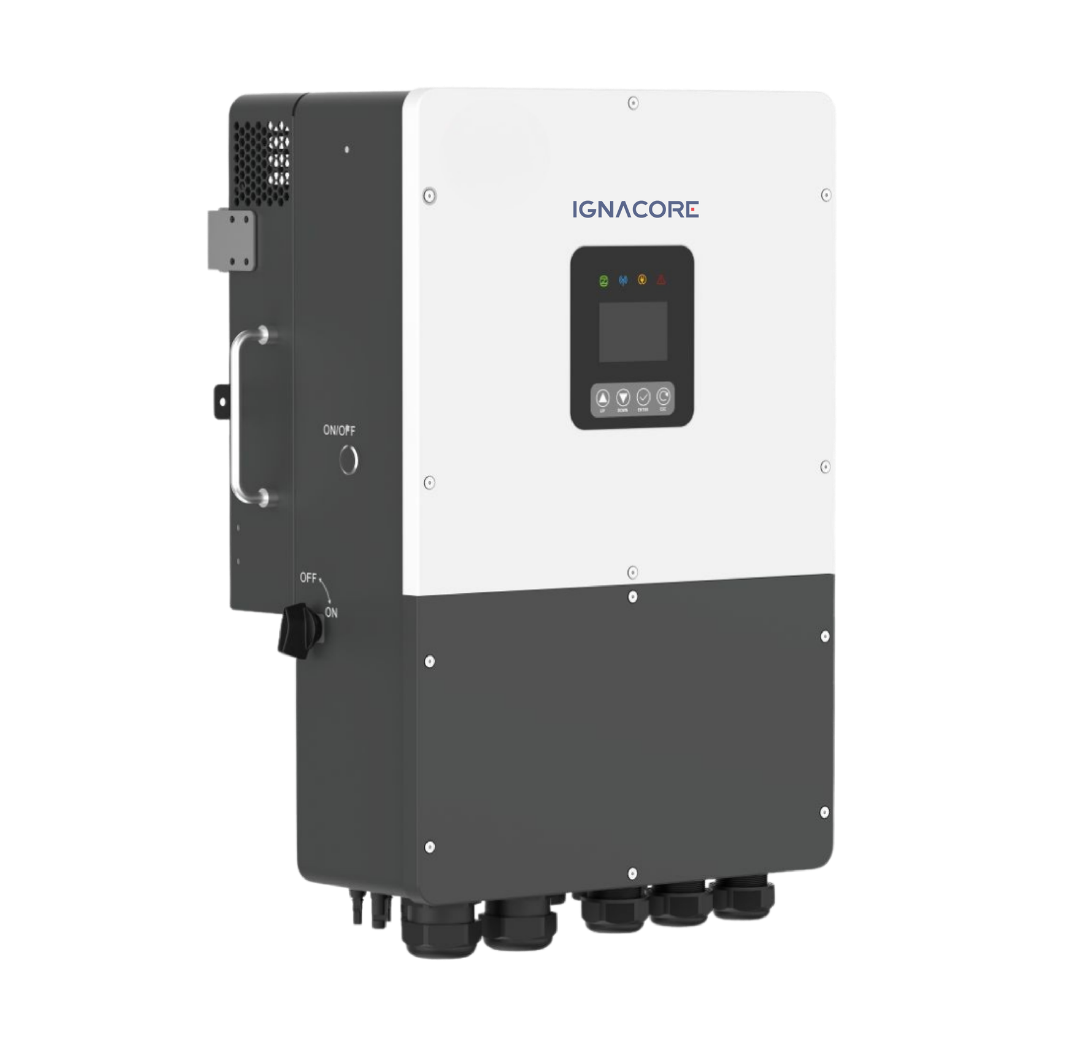

• Supports up to 160% PV oversizing for maximum energy harvest | • 6,000 life cycles battery @ 80% DoD |
• 98% maximum efficiency for superior energy conversion | • IP66 protection – highest protection against rain, dust and shock |
• <6ms UPS-level switching – fastest in its class | • Triple hardware protection for advanced battery safety |
• 10-unit parallel capability for scalable power up to 240kW | • Integrated condensed aerosol fire suppression system |
• 200% EPS peak power for 10 seconds | • Max. discharge power 24kW for heavy loads |
• 80V low start-up voltage for early morning PV generation | • Intelligent energy management for reliable commercial backup power |
A high-performance, low-voltage (LV) smart hybrid energy storage system engineered for massive estates, commercial facilities, and agricultural environments demanding extensive backup runtime.
Designed with a cost-effective approach, a seamlessly integrated minimalist style, and flexible wall-mounted or ground installation options to suit any space.

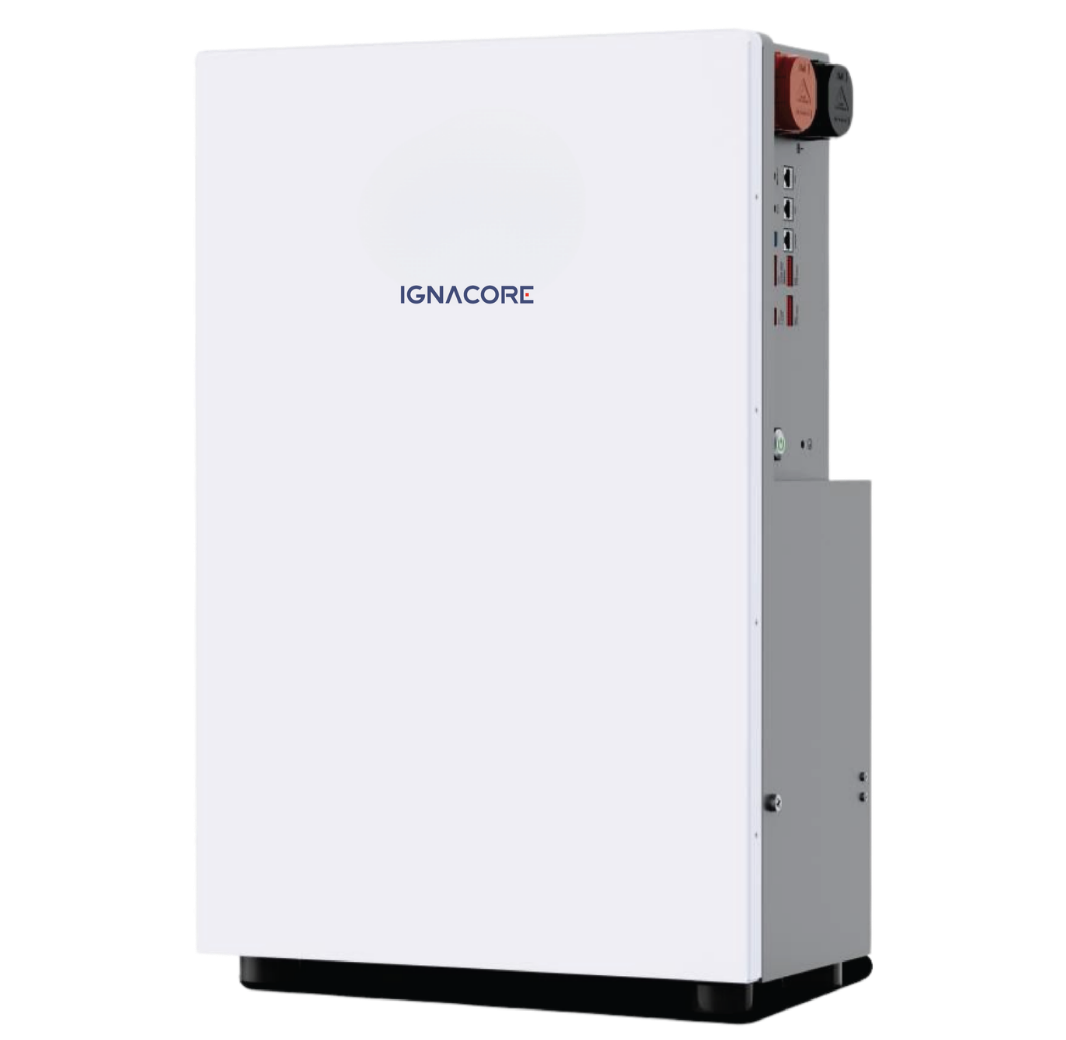

Built with safe and reliable LFP (Lithium Iron Phosphate) technology, featuring multiple security protection strategies, quick connection, and advanced insulation protection for enhanced performance and safety.
Featuring active battery balancing, true parallel operation with RS485 communication, and flexible compatibility for single or parallel use with all 24V hybrid inverters or 2-in-series configuration for all 48V systems.
Advanced BMS
