HomeCore 6/10s

Inverter Capacity: 6kW | Battery Capacity: 10kWh | Maximum PV Input Power: 6500W

BDT 665000.00

Price Disclaimer
IGNACORE Energy Storage System prices may change periodically due to fluctuations in lithium-ion battery costs, exchange rates, and global supply conditions.

Product Delivery Time (maximum)

Inside Dhaka - 2-4 working days & Outside Dhaka - 3-5 working days days

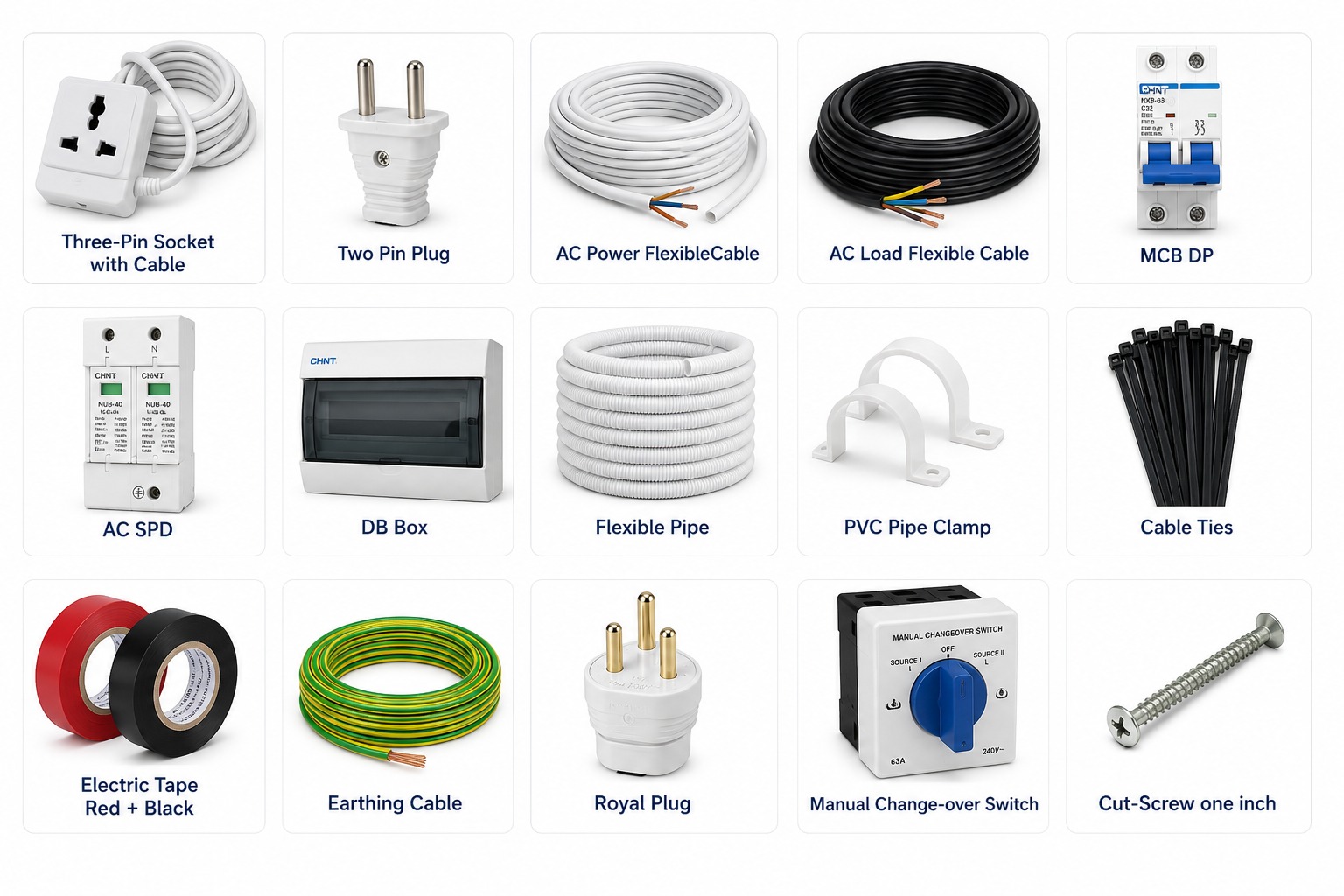

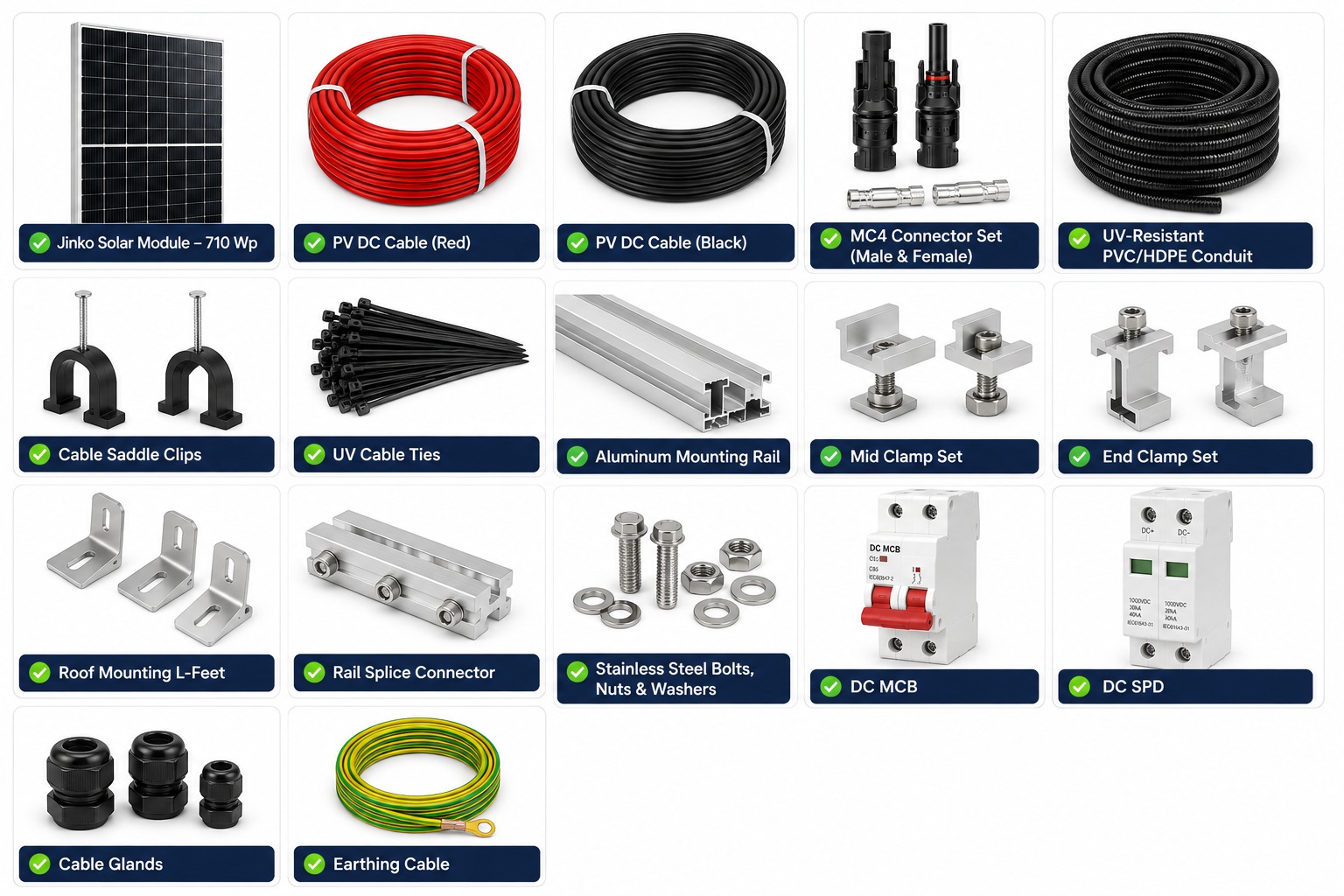

Order Now Relevant Accessories

HomeCore 6/10s is an All-in-One Energy Storage System that consists of a 6kW Single-Phase Hybrid Inverter and a built-in 10.24kWh LiFePO₄ (Semi Solid State) Battery Pack ,It supports up to 11 kW PV input, features 2 MPPTs. It is an ideal solution for homes, offices, retail shops, schools, clinics, and mosques that require dependable backup power with excellent solar performance and long battery life. The system is not designed to run any Three Phase load or load that exceed its rated inverter capacity.

Supports Ceiling Fans, LED Lights, Wi-Fi Router, Refrigerators, up to LED TV, Desktop Computers, CCTV System, 1–2 HP Water Pump, and up to two 1.5 Ton Inverter ACs.
Simultaneously charges from Grid Electricity and Solar Panels for maximum energy efficiency.
6,000 battery life cycles at 80% Depth of Discharge (DOD) using advanced LiFePO₄ (Semi Solid State) battery technology.
Plug & Play stackable design with 10-minute fast commissioning for quick and easy installation.

Intelligent Battery Management System (BMS) provides advanced battery protection and smart load management.
IP65-rated enclosure for enhanced durability and reliable indoor or protected outdoor installation.
Perfect for medium-sized homes, offices, restaurants, retail outlets, educational institutions, and small commercial facilities.
Provides approximately 2 hours of backup at 5,000W load and 8–10 hours at 1,000W load (backup time may vary depending on connected load).

SINGLE PHASE

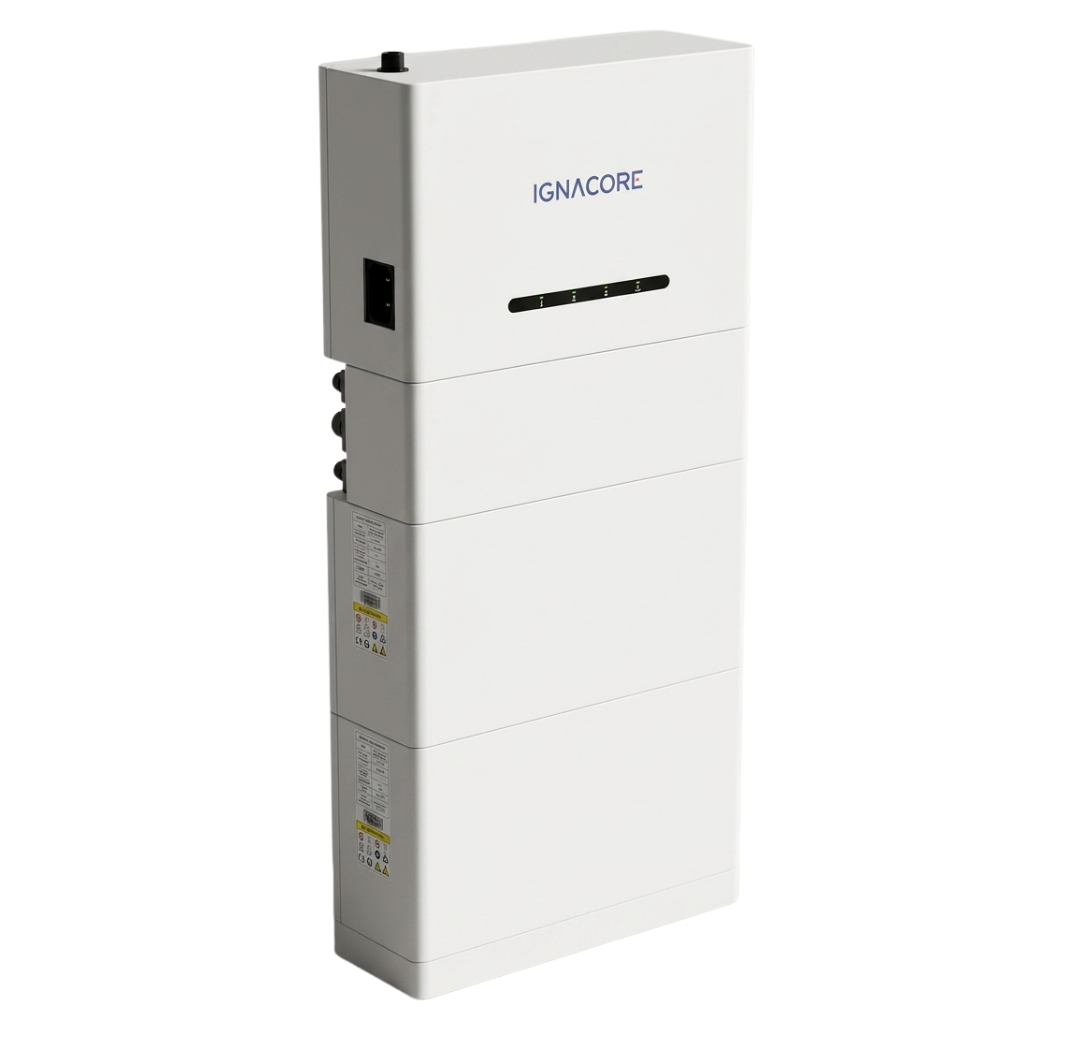

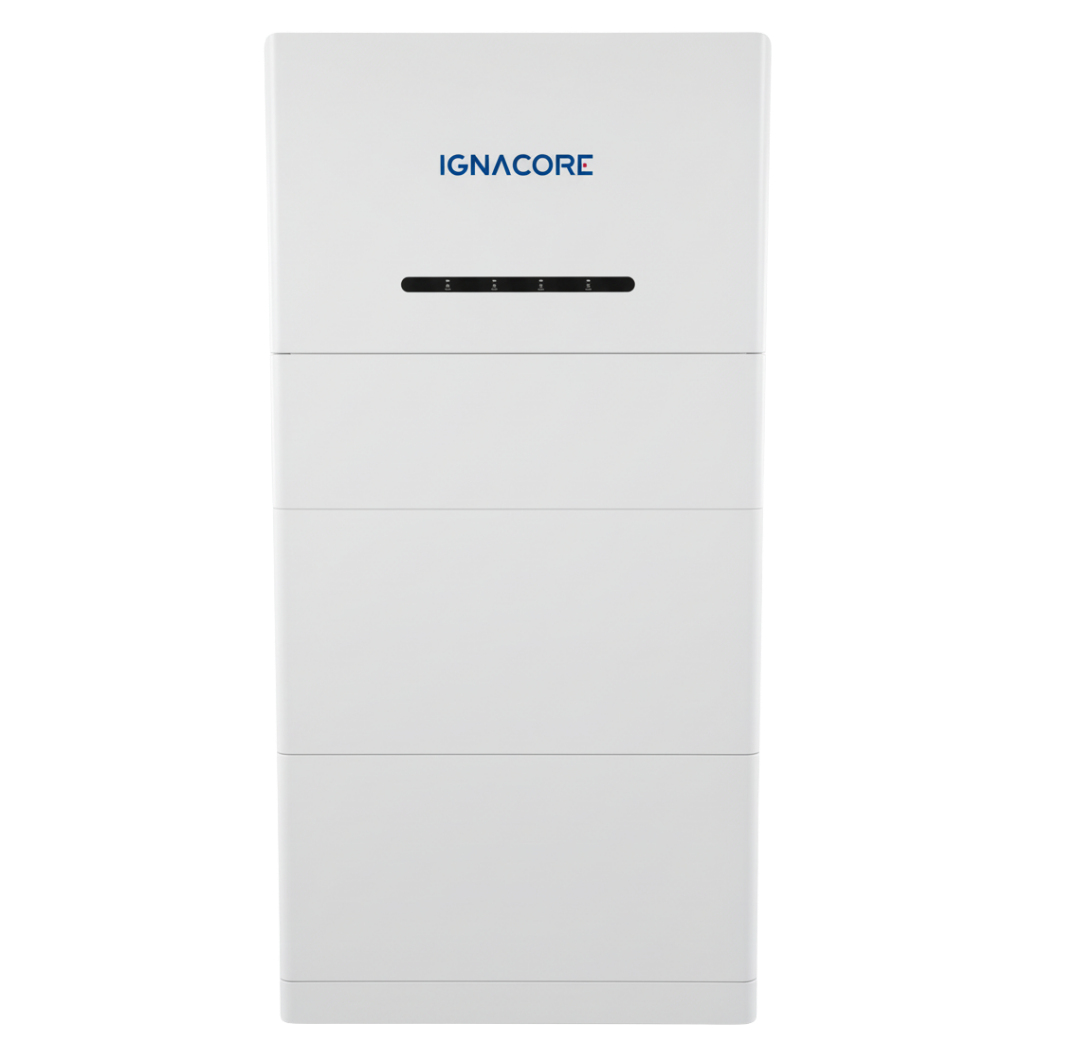

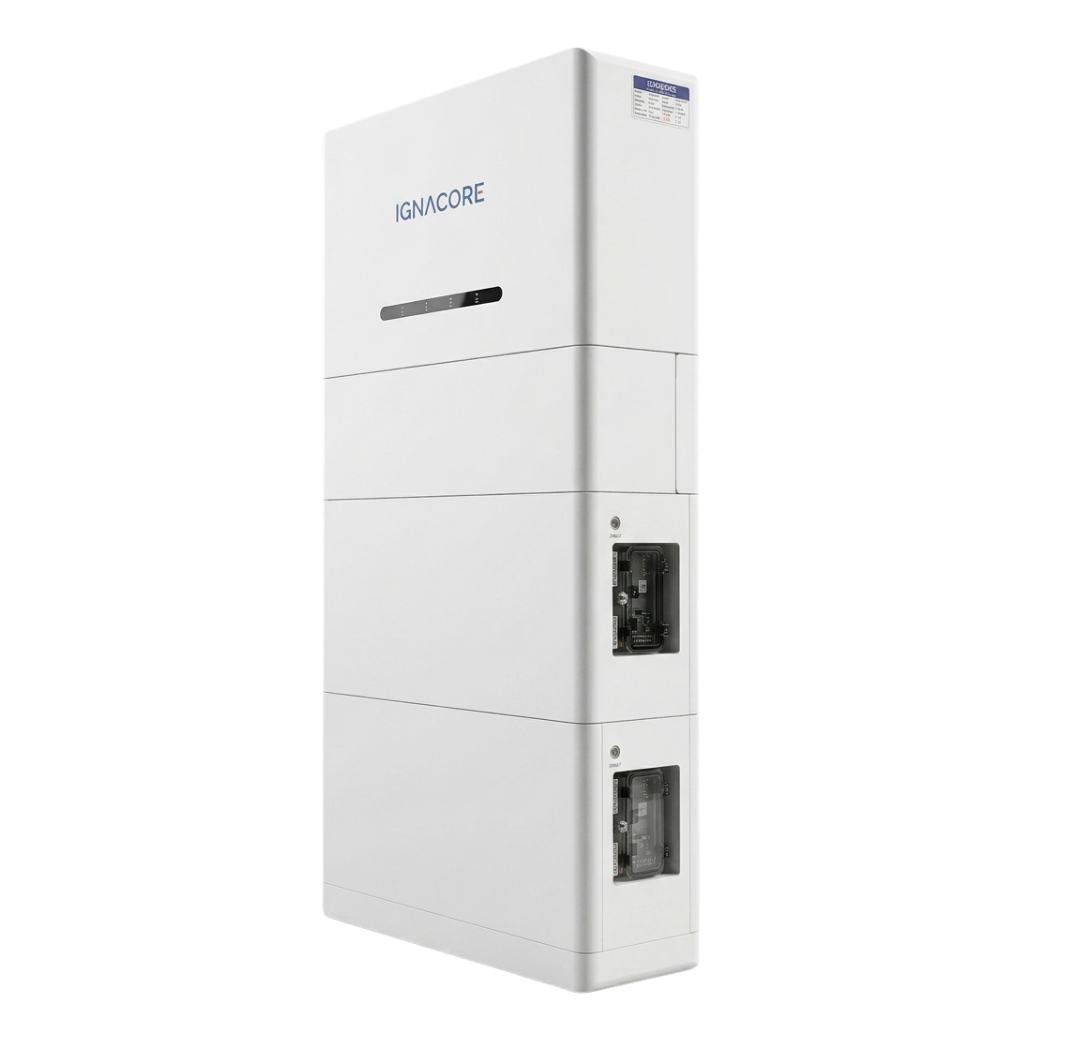

HomeCore 6/10s

An ultra-slim, all-in-one single-phase hybrid energy storage solution designed for residential houses.

6kW

Output

AC OUTPUT

220-240V

BATTERY

10 kWh

MAX SOLAR

6,500 W

AC CHARGE

100A

OVERLOAD

7000W

WEIGHT

117kg

Estimated Runtime (10 kWh)

≈12.5h Refrigerator (800W)

≈12.5h Wi-Fi, Entertainment center (800W)

≈12.5h Lighting, and Ceiling fans (800W)

HIGHLIGHTS

Heavy Duty Unibody Aluminium chassis

CE / RoHS / FCC / PS

8000 design cycles

High quality & competitive Price

Designed with a cost-effective approach, a seamlessly integrated minimalist style, and flexible wall-mounted or ground installation options to suit any space.

Ultra Safety Releiability

Built with safe and reliable LFP (Lithium Iron Phosphate) technology, featuring multiple security protection strategies, quick connection, and advanced insulation protection for enhanced performance and safety.

Comprehensive Smart System

Featuring active battery balancing, true parallel operation with RS485 communication, and flexible compatibility for single or parallel use with all 24V hybrid inverters or 2-in-series configuration for all 48V systems.

Leading Technology

Advanced BMS

Output

HomeCore 6/10s SPECIFICATION

Max. AC output current 27.3A

Max. AC input power from grid 11000VA

Rated/ Max. AC output power 6000W/6000VA

Rated AC output current (at 230V) 26.1A

Rated AC voltage 220V/230V/240V

Input

HomeCore 6/10s SPECIFICATION

AC voltage range 154V~276V

Nominal DC voltage/ Voc 360Vdc/600Voc

Frequency 50Hz

Grid frequency range 45~55Hz

Harmonic (THD) < 3%

Power factor at rated power > 0.99

Adjustable power factor 0.8 (lead) ~ 0.8 (lag)

Phase Single phase

Max. PV input power 11000W

Battery

HomeCore 6/10s SPECIFICATION

Charge voltage 57.6V

Max. charge/discharge current(A) 100

Discharge cut-off voltage(VDC) 43.2

Charge cut-off voltage(VDC) 58.4

Rate voltage(Vdc) 51.2 V

Cell combination 16S1P*2

Rate capacity(AH) 100

Energy storage(KWH) 10.24

Cycle life 6000 @ 80 % DOD

General

HomeCore 6/10s SPECIFICATION

Charge temperature 0°C ~ 50°C@60 ± 25% Relative Humidity

Discharge temperature -20°C ~ 50°C@60 ± 25% Relative Humidity

Storage temperature -20°C ~ 50°C@60 ± 25% Relative Humidity

IP class IP65

Material system LiFePO4 (Semi Solid State)

Protocol(Optional) RS485/RS232/WLAN Optional

Case typc All in One Stack

Net weight(kg) 25+(46*2) = 117
