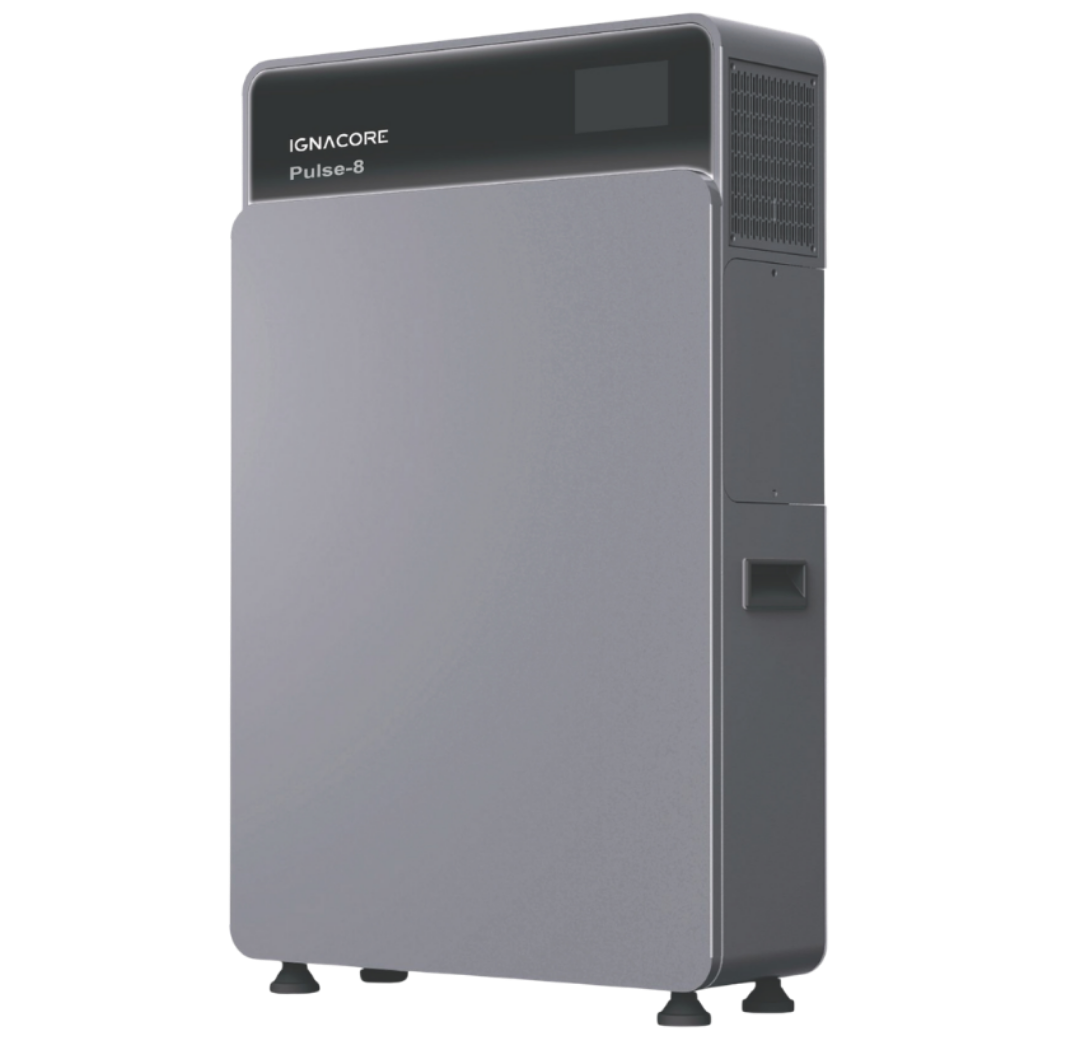

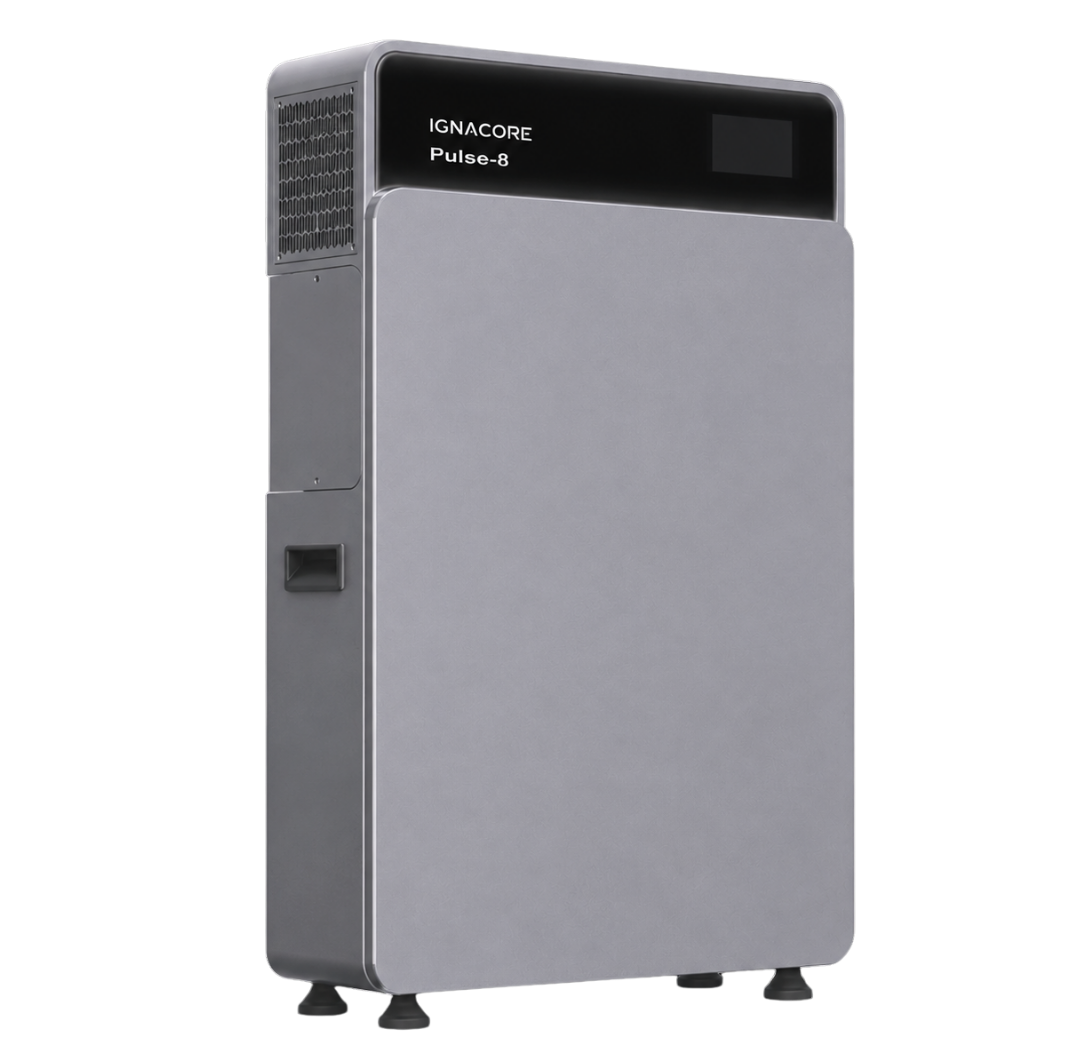

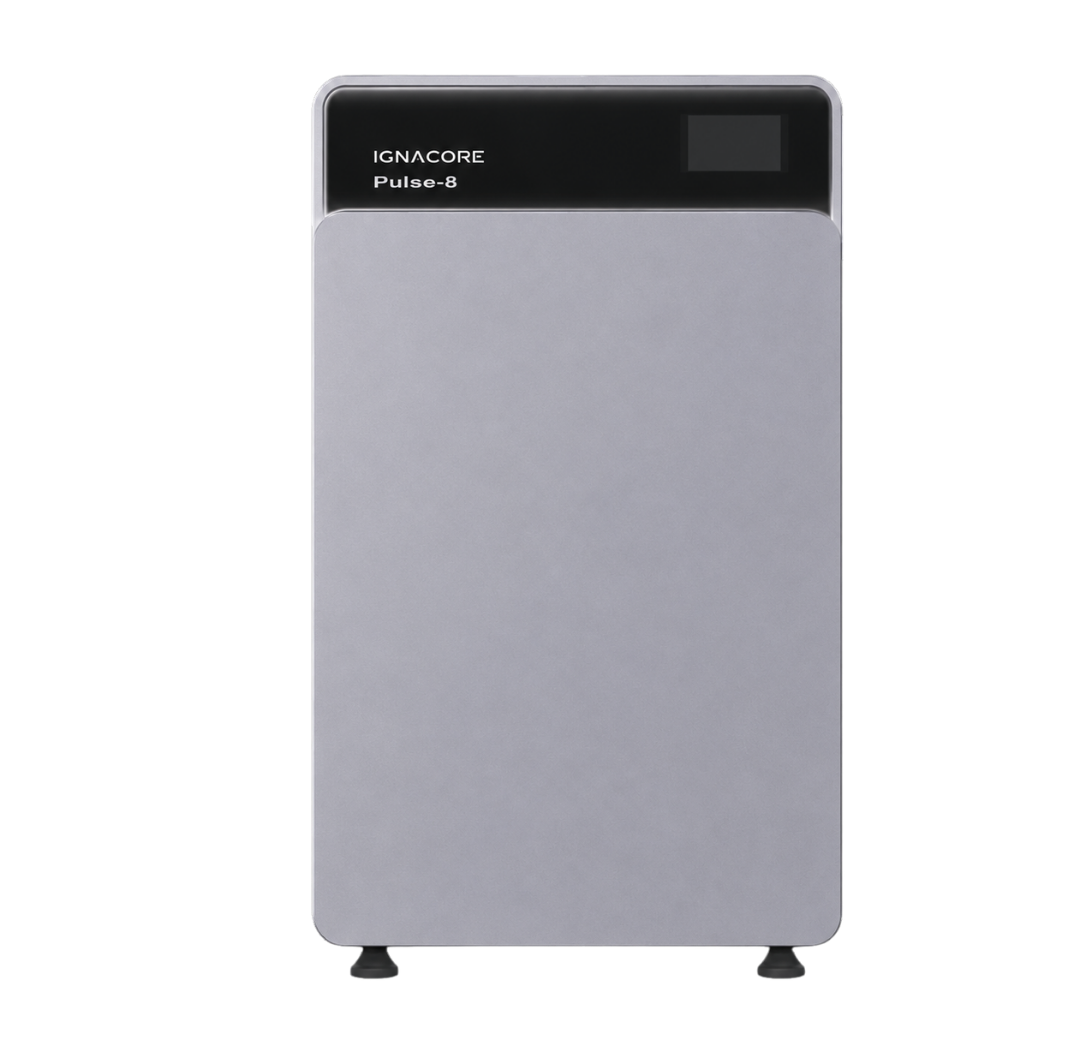

IGNACORE Pulse 8

Inverter Capacity: 4kW | Battery Capacity: 8kWh | Maximum PV Input power: 6200W

BDT 255000.00

Price Disclaimer
IGNACORE Energy Storage System prices may change periodically due to fluctuations in lithium-ion battery costs, exchange rates, and global supply conditions.

Product Delivery Time (maximum)

Inside Dhaka - 2-4 working days & Outside Dhaka - 3-5 working days days

Order Now Relevant Accessories

Pulse-8 is an All-in-One Energy Storage System that consists of a 4kW Pure Sine Wave Hybrid Inverter and a built-in 8kWh LiFePO₄ Battery Pack. It is an ideal solution for houses, apartments, small businesses, schools/madrasas, clinics, and mosques that require longer backup with reliable everyday power.

Supports 6–8 Ceiling Fans, 10–15 LED Lights, Wi-Fi Router, 1–2 Refrigerators, up to 75" LED TV, Desktop Computers, CCTV System, 1 HP Water Pump, and one 1.5 Ton Inverter AC*.

Simultaneously charges from Grid Electricity, Solar Panels, or Generator for maximum flexibility.

UPS-level <10ms automatic switching ensures uninterrupted power during outages.

8,000 life cycles LiFePO₄ battery for long-lasting performance and reliability.

Connect up to 6,200W of Solar Panels to reduce your monthly electricity bill.

Intelligent Battery Management System (BMS) for smart load management and battery protection.

Clean, silent, fuel-free alternative to a 4kVA generator with low maintenance.

Perfect for homes, apartments, retail shops, clinics, educational institutions, and small offices.

High-definition touchscreen display with multiple energy modes including Solar First, Backup First, and Time-of-Use operation.

Provides approximately 2 hours of backup at 4,000W load and 8 hours of backup at 1,000W load (backup time may vary depending on connected load).

Water Pump and Inverter AC should not be operated simultaneously with other high-power appliances such as electric stoves or heavy heating equipment.

All-in-One Hybrid Power Station

IGNACORE Pulse 8

IGNACORE PULSE 8 is a 4kW all-in-one hybrid power station with an 8.04kWh LiFePO₄ battery, 6.2kW MPPT solar input, 3kW AC charging, smart BMS, touchscreen display, and up to 8,000 battery cycles. Designed for homes and small businesses requiring reliable backup power.

4 kW

Output

AC OUTPUT

220 / 230 / 240 Vac

BATTERY

8.04 kWh LiFePO₄ (LFP)

MAX SOLAR

6,200 W

AC CHARGE

3,000 W

OVERLOAD

8.0 kVA (Peak)

WEIGHT

82 kg

Estimated Runtime (8.04 kWh LiFePO₄ (LFP))

≈362h LED Light (20W)

≈103h Ceiling Fan (70W)

≈48h Desktop Compute (150W)

≈1.8h Maximum Continuous Load (4000W)

HIGHLIGHTS

3 Years Warranty

8,000 Battery Cycles

6.2kW Solar MPPT Input

8.04kWh LiFePO₄ Battery

4kW Pure Sine Wave Output

High quality & competitive Price

Designed with a cost-effective approach, a seamlessly integrated minimalist style, and flexible wall-mounted or ground installation options to suit any space.

Safe and durable

A-grade Solid State Lithium Iron Phosphate battery, 6000 cycles

Replaces Diesel Generator

Zero noise & pollution. No need to spend money on costly diesel or petrol.

Leading Technology

Advanced BMS

Output

IGNACORE Pulse 8 SPECIFICATION

Rated Output Power 5,000 W

Max Peak Power 10,000 VA (10 seconds)

Nominal AC Voltage 220V / 230V AC

AC Frequency 50 / 60 Hz (Auto sensing)

THD (Voltage Distortion) < 3% (Linear load)

Input

IGNACORE Pulse 8 SPECIFICATION

MPPT Operating Voltage Range 120V - 450VDC

Max. PV Input Power 6,500 W

Max. PV Open Circuit Voltage 500 VDC

Max. Solar Charge Current 100 A

Battery

IGNACORE Pulse 8 SPECIFICATION

Nominal Energy Capacity 8 kWh

Battery Type Lithium Iron Phosphate (LiFePO4)

Nominal Battery Voltage 51.2 V

Depth of Discharge (DoD) 90%

General

IGNACORE Pulse 8 SPECIFICATION

Dimensions (WDH) 540 * 240 * 980 mm

Net Weight 95 kg

Operating Temperature Range -10°C to 50°C

Design Cycle Life ≥ 6,000 Cycles @ 80% DoD
