IndCore-125-2H-PV-HD

IndCore-125-2H-PV-HD | Inverter Capacity: 125 kW | Battery Capacity: 261kWh | PV Input Power:125 kW

BDT 0.00

Price Disclaimer
IGNACORE Energy Storage System prices may change periodically due to fluctuations in lithium-ion battery costs, exchange rates, and global supply conditions.

Product Delivery Time (maximum)

Inside Dhaka - 2-4 working days & Outside Dhaka - 3-5 working days days

Order Now

IndCore-125-2H-PV-HD is a high-capacity three-phase energy storage system featuring 125kW power output and 261.24kWh LFP battery storage.

This System is designed for industrial and commercial applications, for example, Data centers, Commercial Buildings, Paper mills, Garment Factories, Campuses, Factories and Large Industrial facilities.

Supports on-grid and off-grid operation.
UPS-level zero-break power for critical loads with standard STS.
<100ms charge/discharge conversion time.
Supports 1.1× long-term and 1.2× 1-minute overload capacity.
Supports up to 120kW max PV Power.
1 MPPT channel with 4 PV input channels.

· 261.24kWh LFP battery system with 728–949V voltage range.

· 10,000-cycle battery life at 0.5C, 80% DOD at 25°C.

· Liquid cooling for efficient thermal management.

· Aerosol fire-fighting system for enhanced system safety.

Industrial & Commercial Energy Storage System (ESS

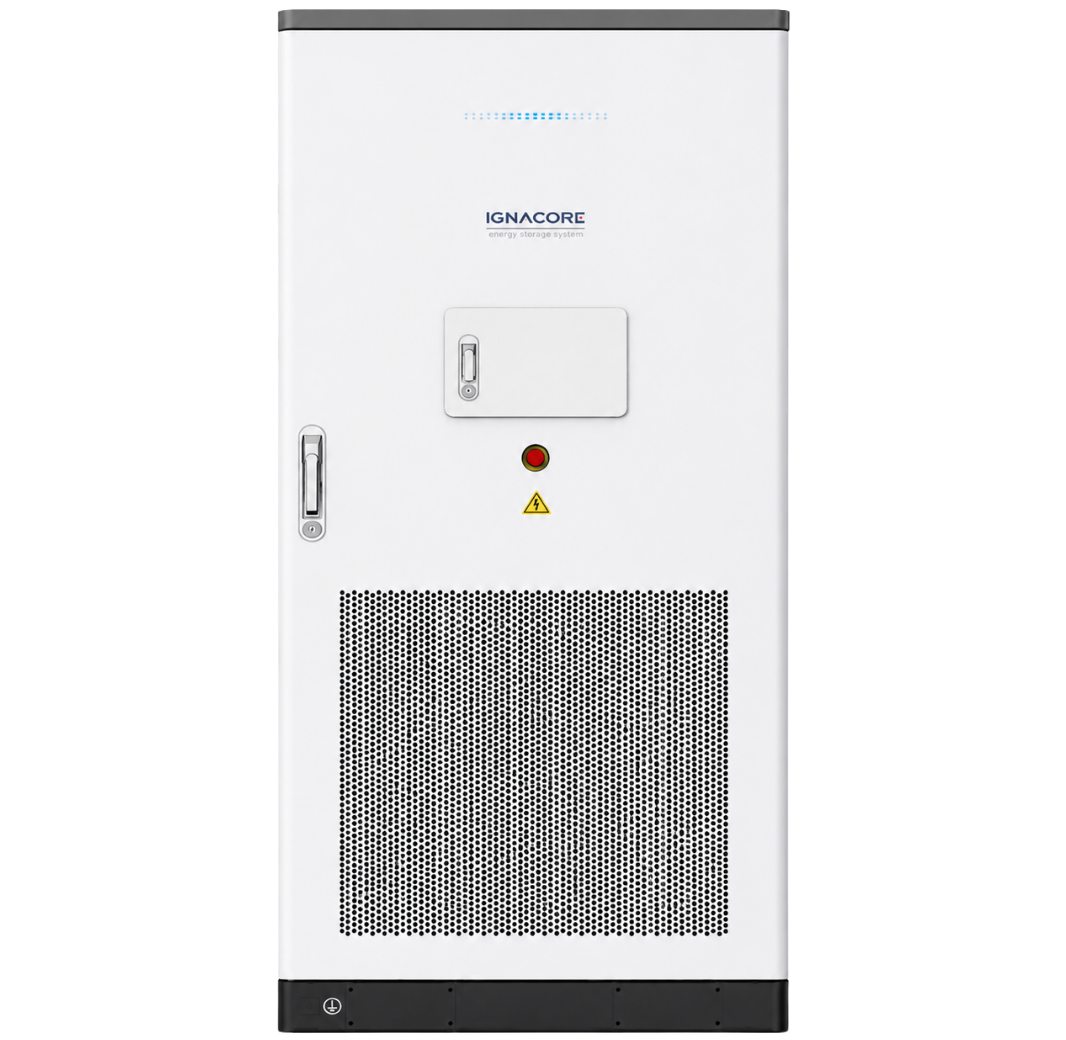

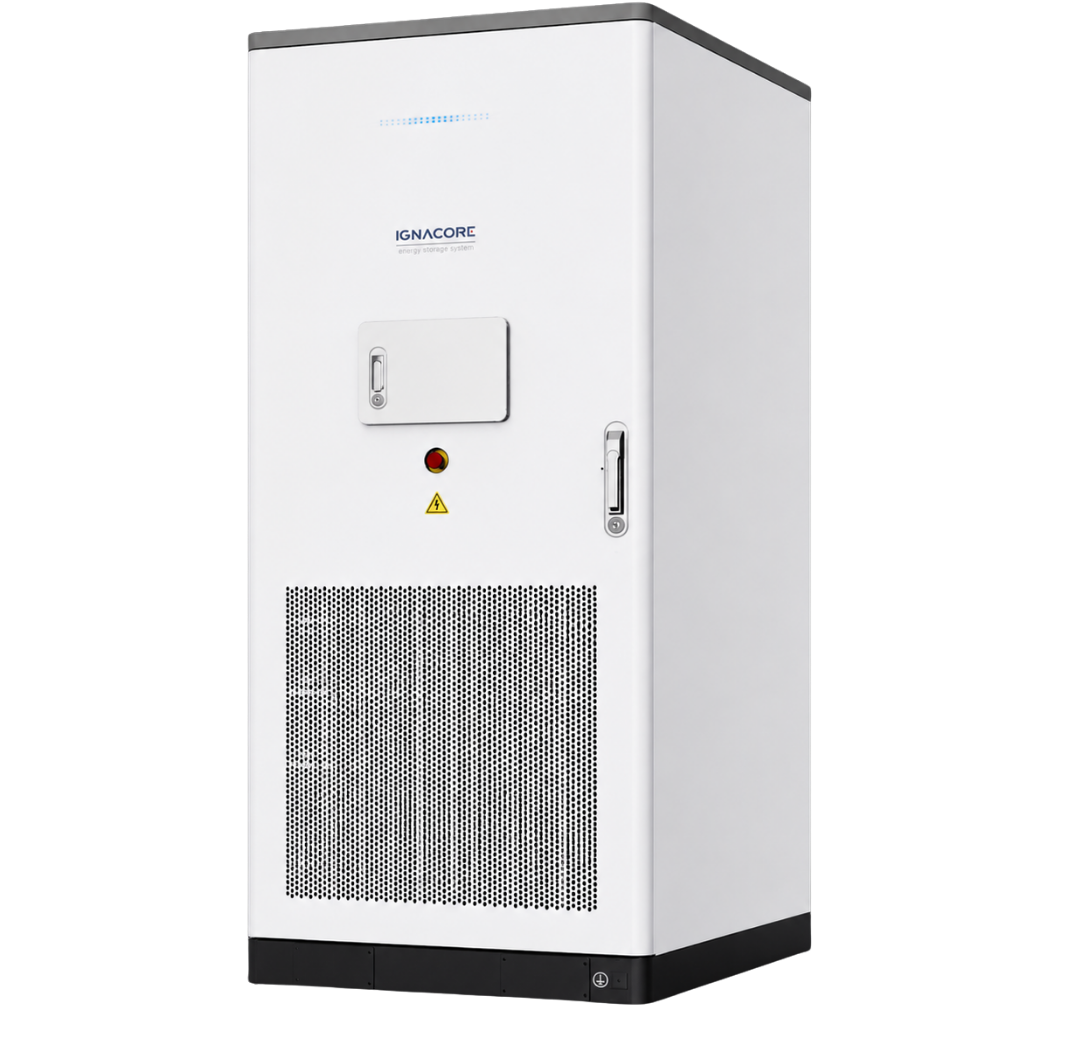

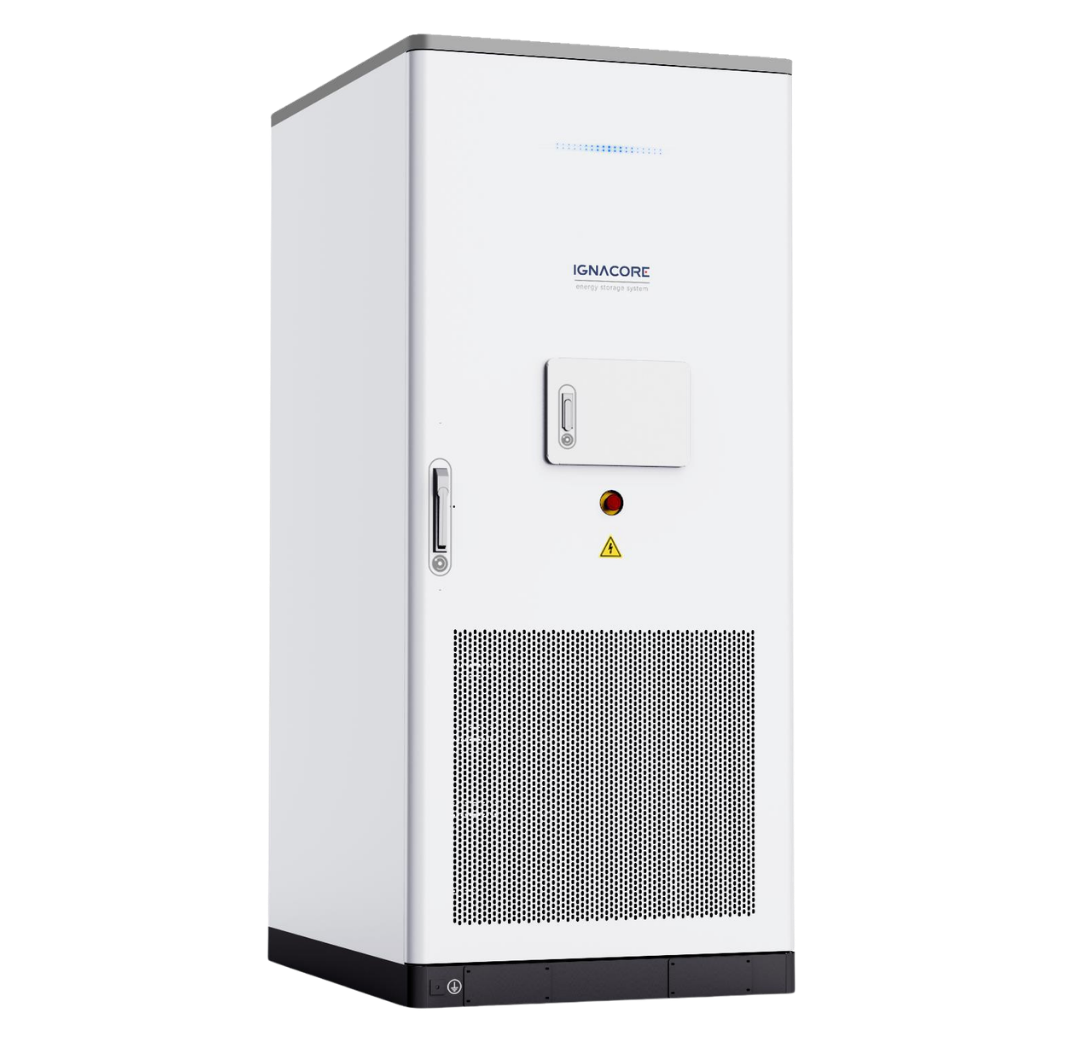

IndCore-125-2H-PV-HD

A powerful all-in-one energy storage system, designed for large-scale commercial and industrial establishments

125 kW

Output

AC OUTPUT

150 kW

BATTERY

261 kWh LFP

MAX SOLAR

Up to 125 kW PV Integration

AC CHARGE

125 kW

OVERLOAD

110%

WEIGHT

2,850 kg

Estimated Runtime (261 kWh LFP)

≈20h Light Industrial Load (13000W)

≈8h Medium Industrial Load (32500W)

≈4h Commercial Full Operation (65000W)

≈2h Full Rated Load (125000W)

HIGHLIGHTS

IP54 Outdoor Protection

98.9% Conversion Efficiency

Integrated PCS + STS + ATS

10,000 Battery Cycles

Three-Level Fire Protection

All-in-One ESS Design

Liquid Cooling Technology

261kWh Battery Capacity

125kW Rated Output

High quality & competitive Price

Designed with a cost-effective approach, a seamlessly integrated minimalist style, and flexible wall-mounted or ground installation options to suit any space.

Ultra Safety Releiability

Built with safe and reliable LFP (Lithium Iron Phosphate) technology, featuring multiple security protection strategies, quick connection, and advanced insulation protection for enhanced performance and safety.

Comprehensive Smart System

Featuring active battery balancing, true parallel operation with RS485 communication, and flexible compatibility for single or parallel use with all 24V hybrid inverters or 2-in-series configuration for all 48V systems.

Leading Technology

Advanced BMS

Output

IndCore-125-2H-PV-HD SPECIFICATION

Rated Output Power 125 kW

Maximum Output Power 150 kW

Rated Grid Voltage 400 Vac

Grid Frequency 50/60 Hz

Rated Charge/Discharge Current 182 A

Maximum Charge/Discharge Current 217 A

Power Factor >0.99

Adjustable Power Factor -1 to 1

Total Harmonic Distortion <3%

Maximum Conversion Efficiency 98.90%

Overload Capacity 110% for 10 Minutes

Input

IndCore-125-2H-PV-HD SPECIFICATION

Maximum DC Voltage 950 V

Minimum DC Voltage 580 V

DC Operating Voltage Range 580–950 V

Maximum DC Current 216 A

Battery Rated Voltage 728–936 V

Maximum Charging Current 157 A

Battery

IndCore-125-2H-PV-HD SPECIFICATION

Battery Capacity 261 kWh

Battery Type LiFePO₄ (LFP)

Battery Voltage 832 VDC (Nominal)

Cooling Method Liquid Cooling

Battery Management System Integrated BMS

Cycle Life ≥ 6000 Cycles

General

IndCore-125-2H-PV-HD SPECIFICATION

Cooling System Liquid Cooling (Battery), Smart Air Cooling (Cabinet)

Protection Grade IP54

Cabinet Dimensions(WxDxH) 1120 × 1400 × 2340 mm

Cabinet Weight 2,850 kg

Maximum Efficiency 98.90%

Operating Temperature -40°C to +60°C

Communication Ethernet, RS485, CAN

Display LED

Maximum Operating Altitude 4,000 m

Fire Protection Three-Level Fire Protection

Cooling Technology Precision Liquid Cooling

IndCore-125-2H-PV-HD
