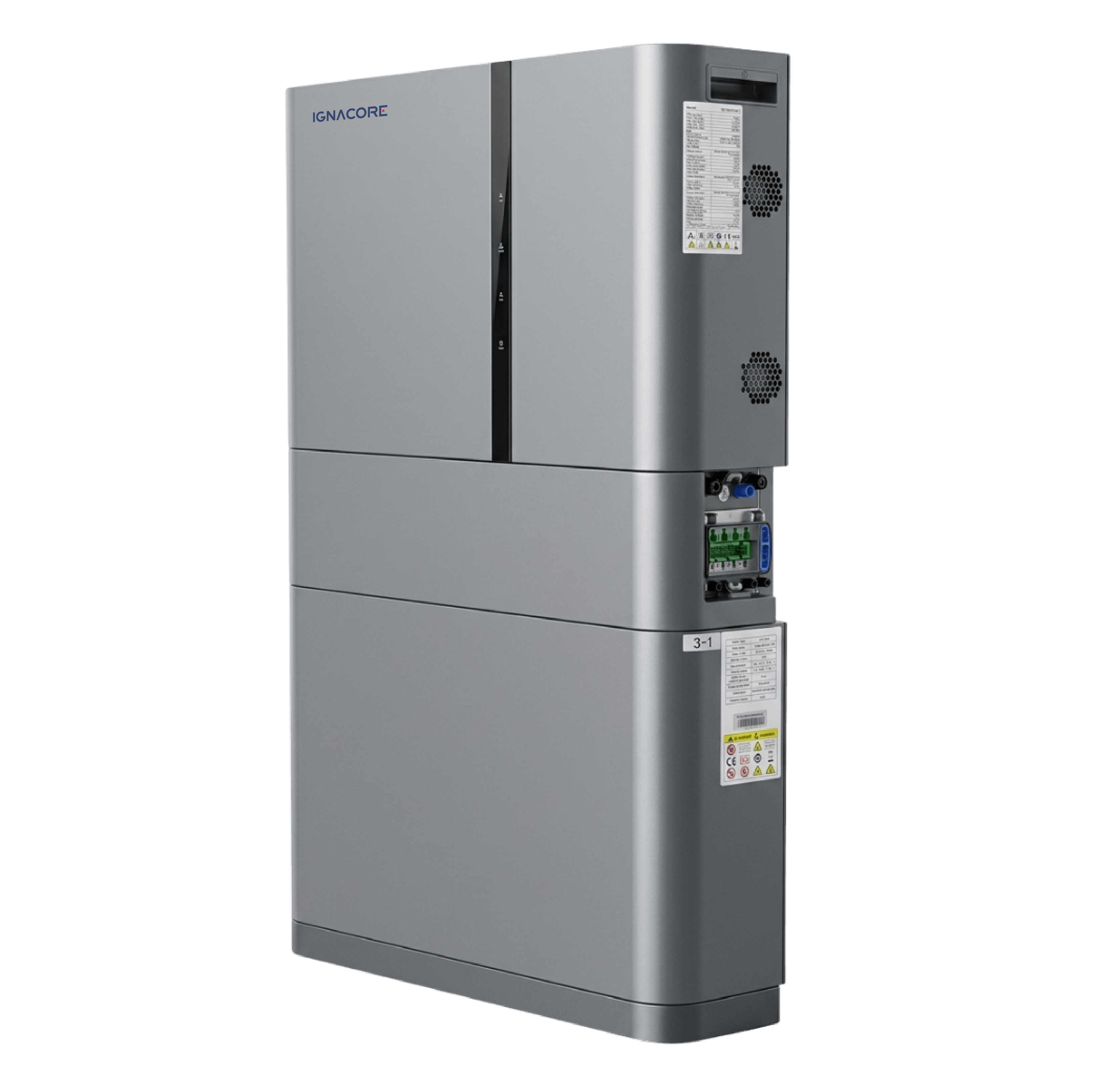

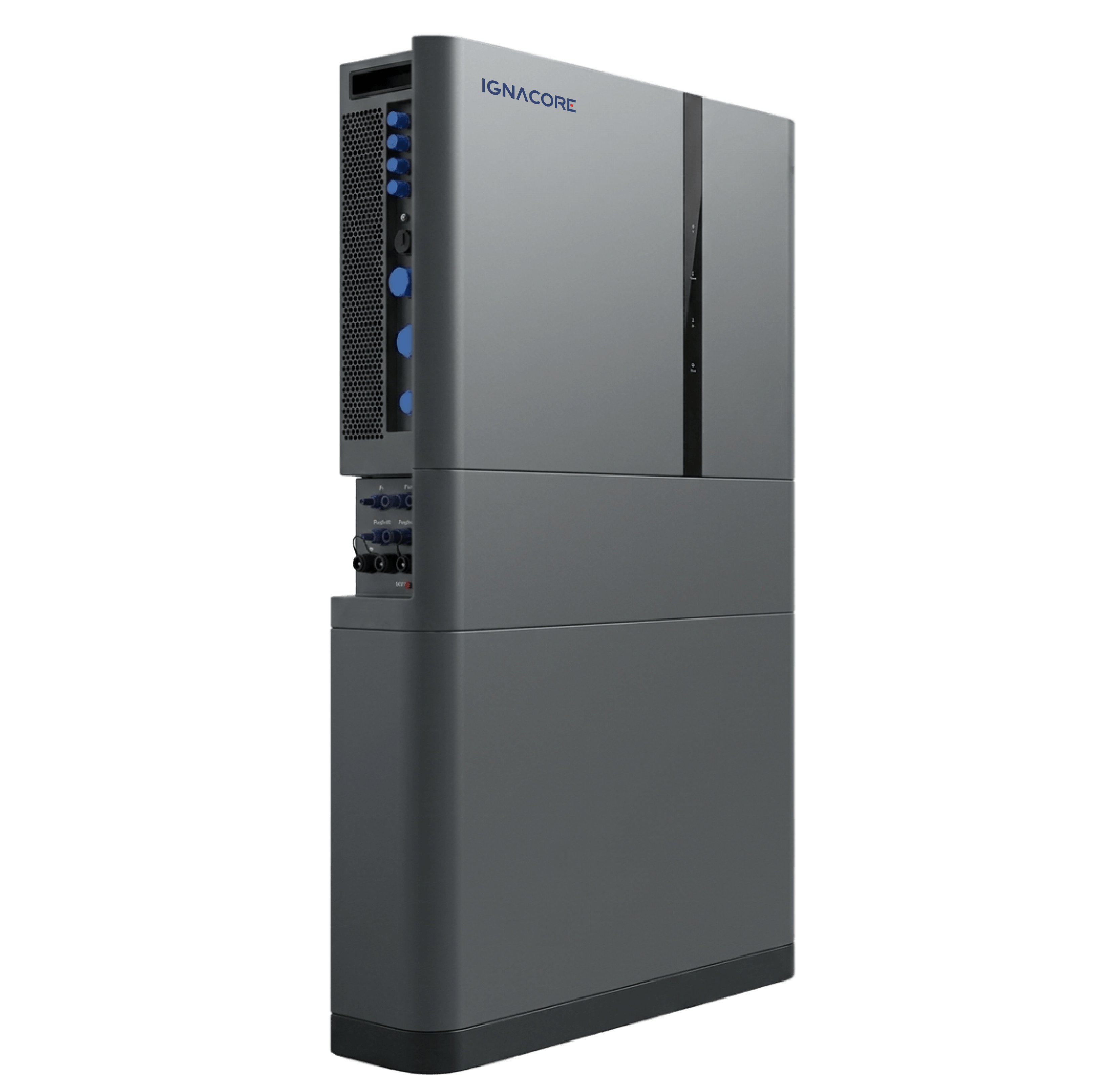

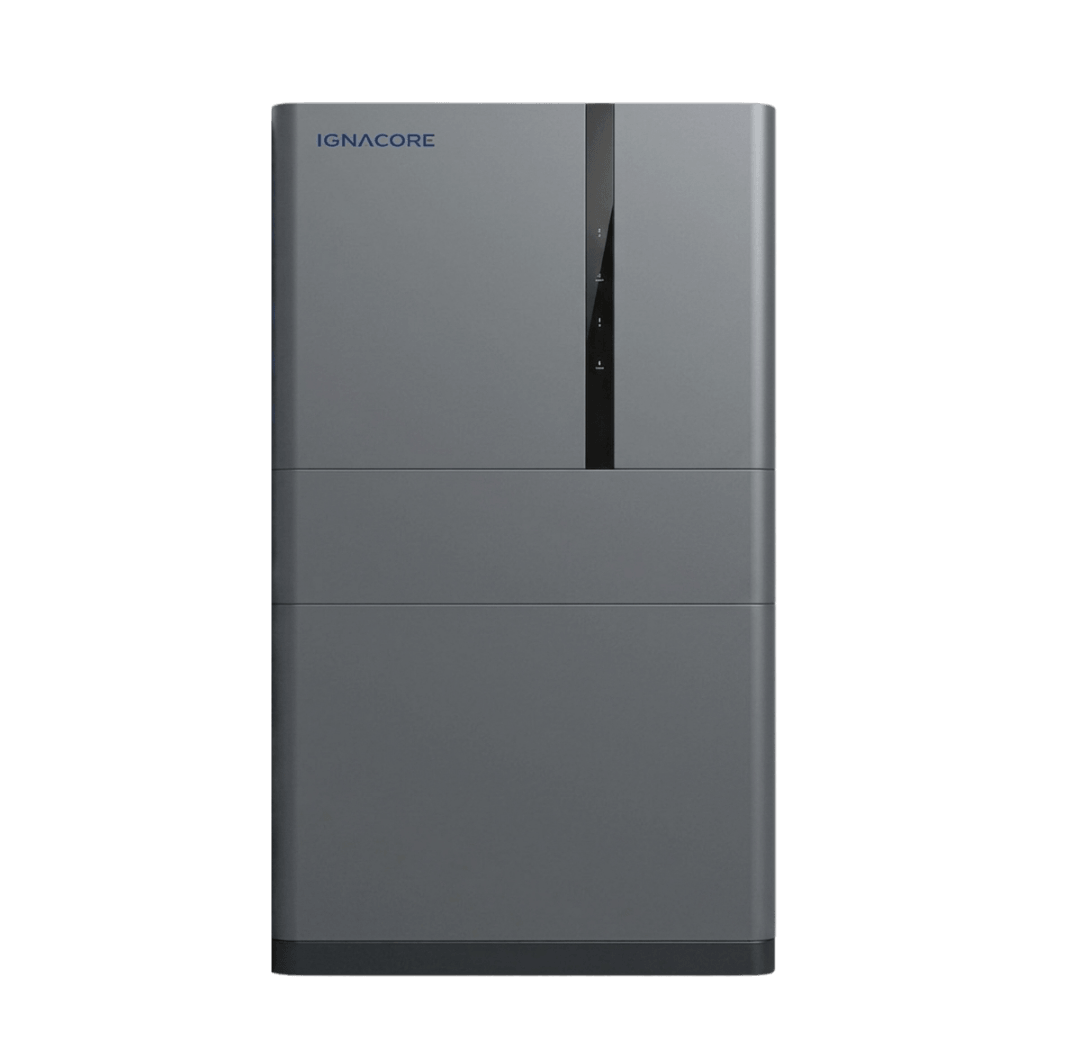

ProCore-10kW/10kWh AIO

Three Phase Inverter Capacity: 10kW | Battery Capacity: 10kWh | Maximum PV Input Power: 15,000W

BDT 875000.00

Price Disclaimer
IGNACORE Energy Storage System prices may change periodically due to fluctuations in lithium-ion battery costs, exchange rates, and global supply conditions.

Product Delivery Time (maximum)

Inside Dhaka - 2-4 working days & Outside Dhaka - 3-5 working days days

Order Now Relevant Accessories

ProCore-10kW/10kWh AIO is a 10kW three-phase commercial & industrial hybrid energy storage system featuring a 10kWh semi-solid-state LiFePO₄ battery pack. Ideal for, powering building small lift, small inverter AC, three phase water pumps, and small businesses that require reliable backup and peak load shaving to reduce electricity bills.

15,000W of Solar Panels to lower your monthly electricity bill.,
Simultaneously charges from Grid and solar panels.
UPS-level 10ms switching,
Parallel operation of up to six inverters to handle upto 60kw of total load

6,000 life cycles battery
IP65 protection – external protection for rain, dust and shock
Intelligent energy management for reliable residential and small commercial backup power.

Three Phase All-in-One Energy Storage System (ESS)

ProCore-10kW/10kWh AIO

Professional grade 10 kW power efficient energy management system.

10 kW/ 10 kWh

Output

AC OUTPUT

10,000W

BATTERY

9.6kWh

MAX SOLAR

15,000W PV Input

AC CHARGE

20,500VA Max AC

OVERLOAD

11,000VA

WEIGHT

172kg

Estimated Runtime (9.6kWh)

≈19.2h Light Load (500W)

≈9.6h Home Backup (1000W)

≈4.8h Office Load (2000W)

≈1.9h Heavy Load (5000W)

≈1.0h Full Load (10000W)

HIGHLIGHTS

Three-Phase Output

IP65 Protection

<10ms UPS Switching Time

6000+ Battery Cycles

15kW Solar Input Support

9.6kWh LiFePO₄ Semi-Solid-State Battery

10kW Rated Output

High quality & competitive Price

Designed with a cost-effective approach, a seamlessly integrated minimalist style, and flexible wall-mounted or ground installation options to suit any space.

Ultra Safety Releiability

Built with safe and reliable LFP (Lithium Iron Phosphate) technology, featuring multiple security protection strategies, quick connection, and advanced insulation protection for enhanced performance and safety.

Comprehensive Smart System

Featuring active battery balancing, true parallel operation with RS485 communication, and flexible compatibility for single or parallel use with all 24V hybrid inverters or 2-in-series configuration for all 48V systems.

Large capacity

Ultra-long battery life

Leading Technology

Advanced BMS

Output

ProCore-10kW/10kWh AIO SPECIFICATION

Rated AC Output Power 10,000W

Max AC Output Apparent Power 11,000VA

Rated / Max Output Current 15.2A / 16.7A

Rated AC Voltage 220/380V, 230/400V, 240/415V

AC Voltage Range 270–480V

AC Type Three Phase

Harmonic Distortion (THD) <3%

Power Factor >0.99

Rated Grid Frequency 50/60Hz

Grid Frequency Range 45–55Hz / 55–65Hz

Input

ProCore-10kW/10kWh AIO SPECIFICATION

Max. PV input power 15,000W

Nominal DC Voltage / Voc 600V

Start-up Voltage 180V

MPPT Voltage Range 150–950V

Number of MPPTs / Strings 1 / 2

Max PV Input / Short Circuit Current 48A (16A/32A)

Max AC Input Power from Grid 20,500VA

Battery

ProCore-10kW/10kWh AIO SPECIFICATION

Battery Type LFP Semi-Solid-State

Cell Configuration 1P60S

Battery Cycles 6000 @ 80% DoD

Charging Time 1.34 Hours

Battery Capacity 9.6kWh

Battery Cell 3.2V, 50A

Battery Pack 1 × (192V, 50A)

Charge/Discharge Rate 0.5C

Cooling Smart Air Cooling with Air Conditioner

General

ProCore-10kW/10kWh AIO SPECIFICATION

IP Rating IP65

Material System LiFePO₄

Case Material Metal

Case Type All-in-One Stack

Communication RS485 / RS232 / WLAN (Optional)

Charge Temperature 0°C to 50°C

Storage Temperature -20°C to 50°C

Inverter Weight 63kg

Certification UN38.3, MSDS, EN, IEC, NRS, G99

Discharge Temperature -20°C to 50°C
