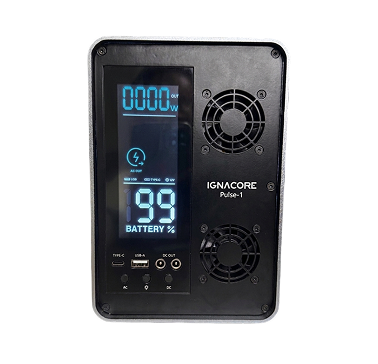

Pulse 1

Inverter Capacity: 500W | Battery Capacity: 1000 Wh | PV Input Power: 300 W

BDT 43000.00

Price Disclaimer
IGNACORE Energy Storage System prices may change periodically due to fluctuations in lithium-ion battery costs, exchange rates, and global supply conditions.

Product Delivery Time (maximum)

Inside Dhaka - 2-4 working days & Outside Dhaka - 3-5 working days days

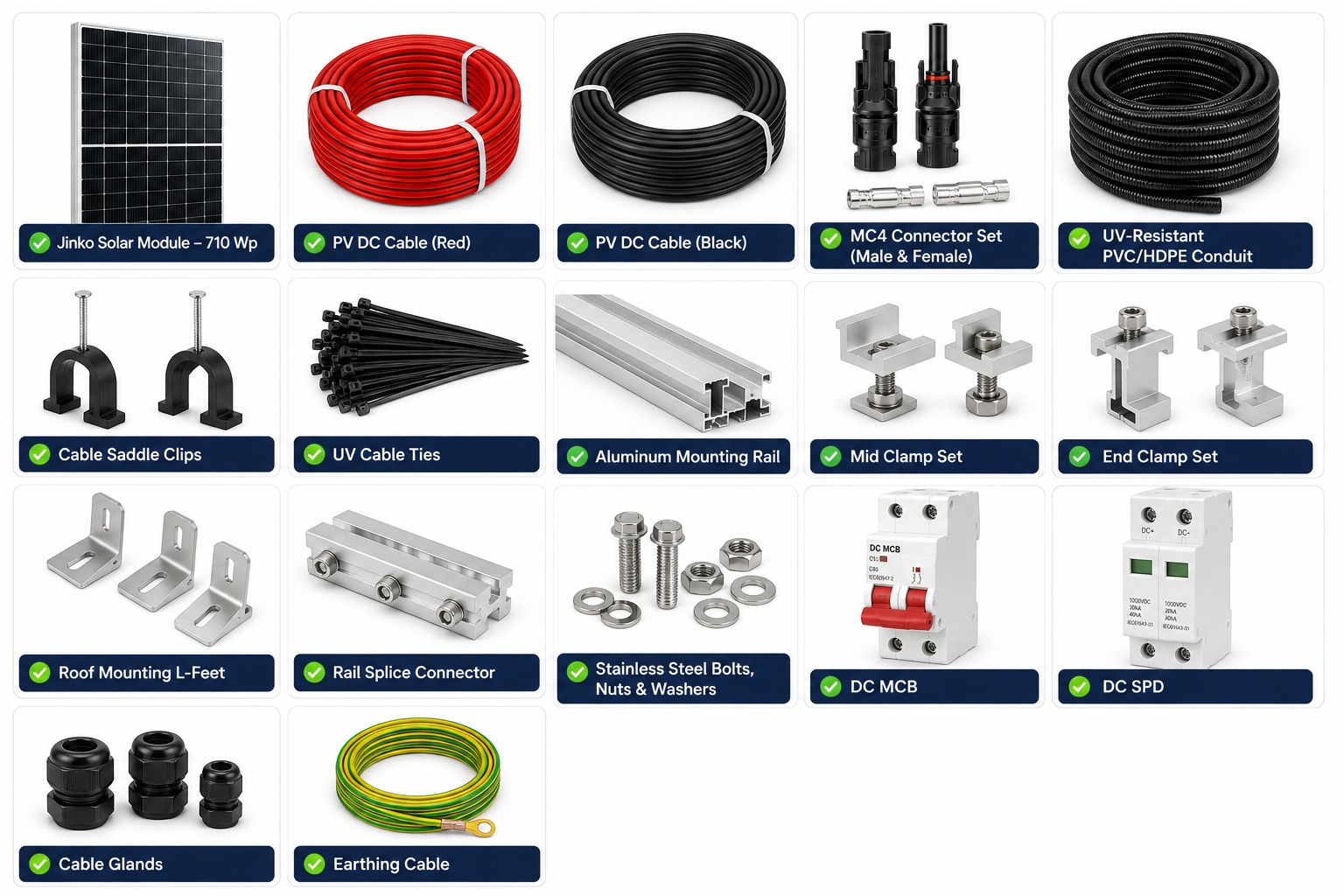

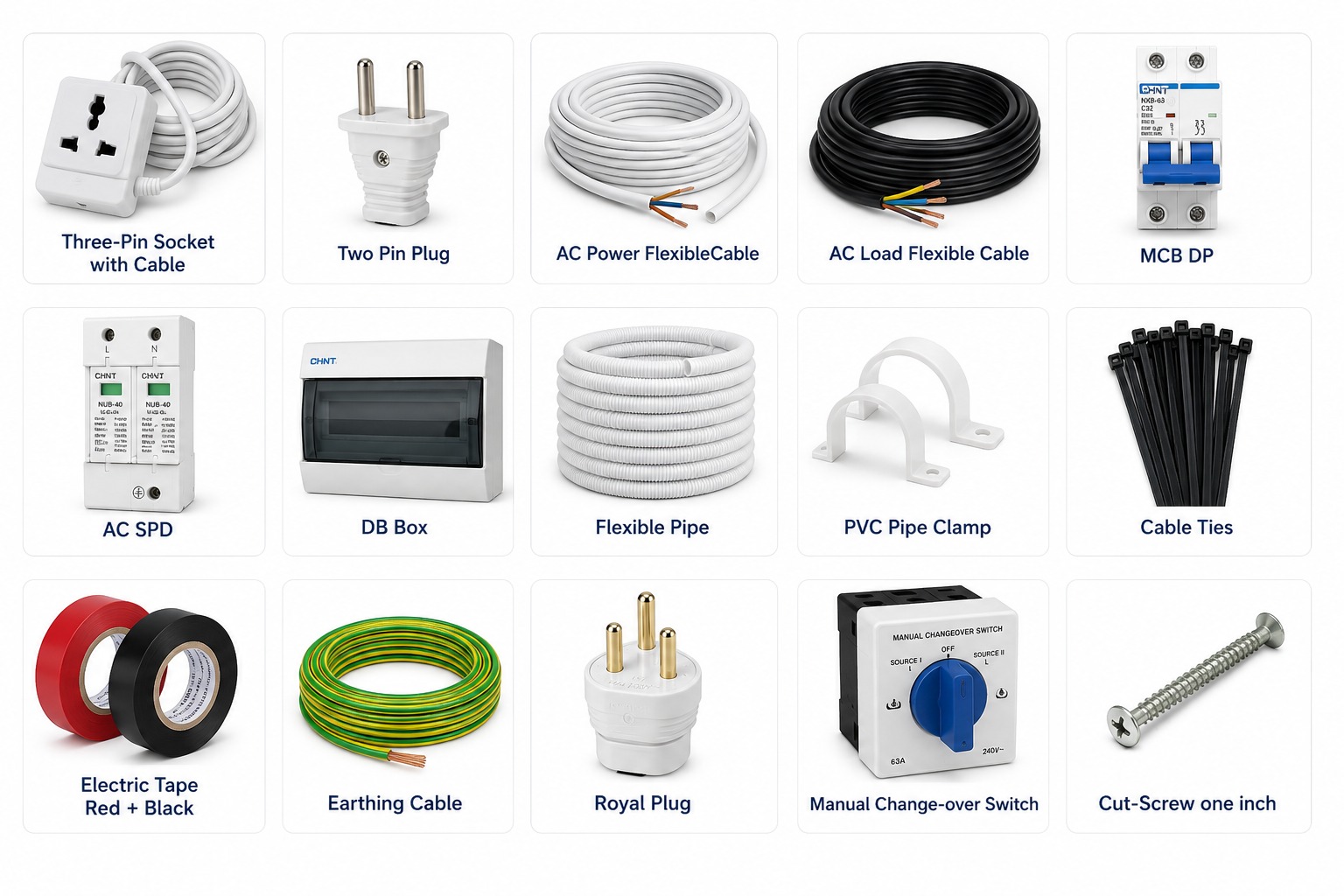

Order Now Relevant Accessories

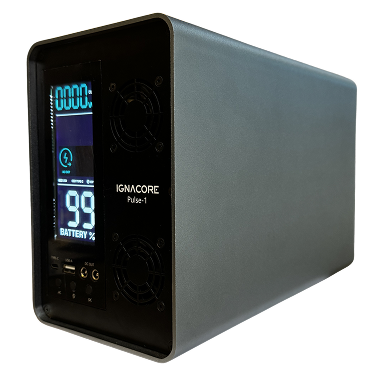

Pulse-1 is our smallest All-in-One Energy Storage System that consists of a 500w hybrid Inverter and a built-in 1000wh Battery Pack.

. Supports 3-4 Ceiling Fans, 5-6 Lights and Wifi Router.

. Simultaneously charges from Grid and solar panels.

. UPS-level 10ms switching

. 8,000 life cycles battery

. Tough 2mm Aluminium chassis

. Intelligent BMS for smart load management

. 4 Heat Extraction Fans for optimum battery cooling in Hot, humid area

. 2 hours backup in 400w load

Portable Energy Storage System

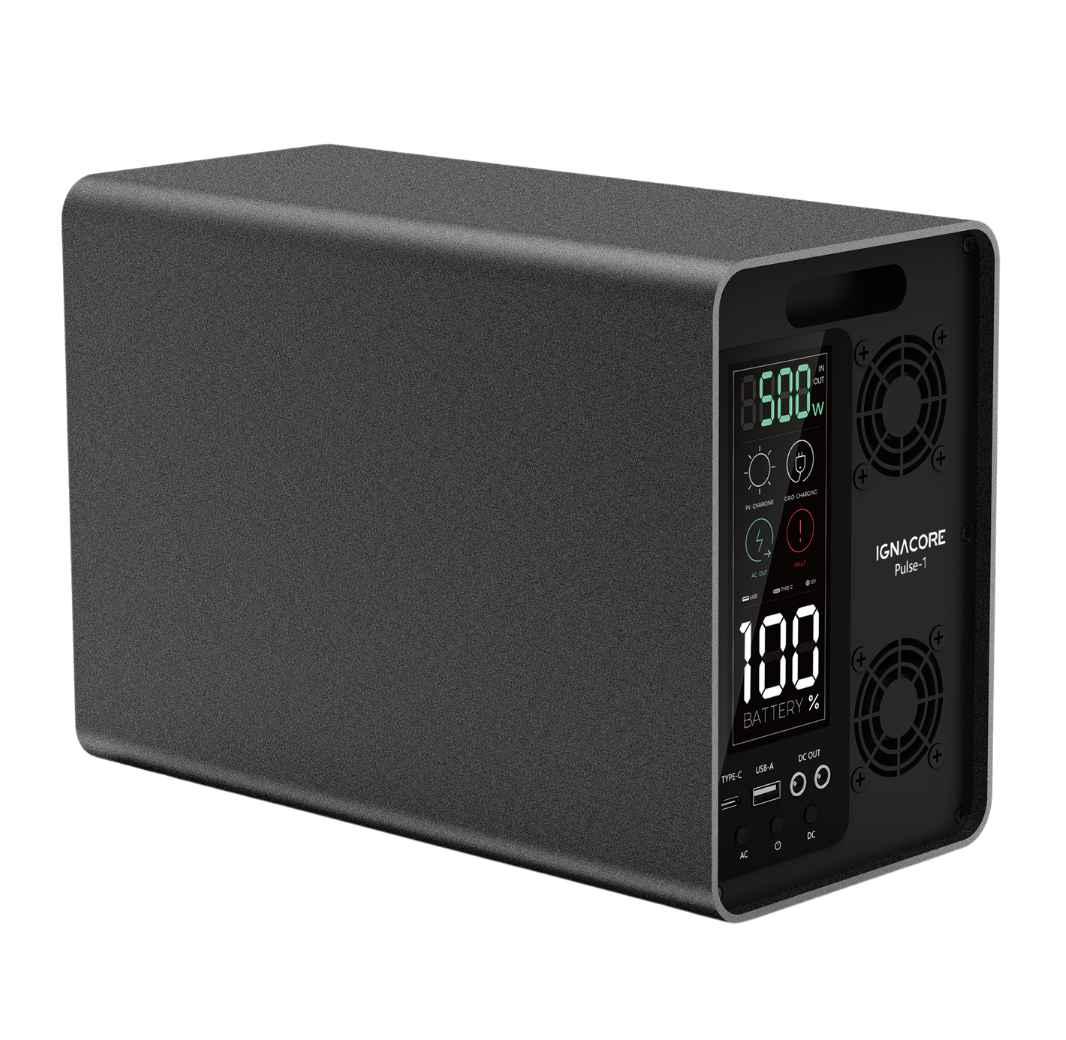

Pulse 1

Portable 500W/1.005kWh Energy Storage System with LiFePO4 battery, 8,000-cycle life, 300W solar charging, 500W AC charging, integrated BMS, multiple safety protections, and clean, reliable backup power for home, office, and outdoor use.

500W

Output

AC OUTPUT

500 W

BATTERY

1 kWh

MAX SOLAR

350 W

AC CHARGE

500 W max

OVERLOAD

600 W (10s)

WEIGHT

9.8 kg

Estimated Runtime (1 kWh)

≈20h Essential Night (50W)

≈10h Study Mode (95W)

≈7h Small Shop (140W)

≈6.3h Family Evening (150W)

HIGHLIGHTS

Advanced BMS

4 fans for excellent heat extraction

USB-A & USB-C QC3.0

Active cell balancing

CE / RoHS / FCC / PS

8000 design cycles

Heavy Duty Unibody Aluminium chassis

High quality & competitive Price

Designed with a cost-effective approach, a seamlessly integrated minimalist style, and flexible wall-mounted or ground installation options to suit any space.

Ultra Safety Releiability

Built with safe and reliable LFP (Lithium Iron Phosphate) technology, featuring multiple security protection strategies, quick connection, and advanced insulation protection for enhanced performance and safety.

Comprehensive Smart System

Featuring active battery balancing, true parallel operation with RS485 communication, and flexible compatibility for single or parallel use with all 24V hybrid inverters or 2-in-series configuration for all 48V systems.

Leading Technology

Advanced BMS

Output

Pulse 1 SPECIFICATION

Rated Voltage 220 - 230 Vac

Rated Power 500 W

AC Output Overload Power 600 W 9 10s)

Frequency 50 /60 Hz

USB-A Output 5 Vdc,2.4 A max, QC#.) up to 18W

USB-B Output 5 Vdc, 2.4 A max,QC3.0 up to 18 W

12V DC Output 12 Vdc, 10 A max (120 W max)

Input

Pulse 1 SPECIFICATION

AC Charging Input 90 - 280 Vac, 45 ? 65 HZ, 500 W max

MPPT Voltage Range 11- 55 Vdc

PV Input (MPPT) MPPT Connector XT 60

Max. Input Power 350 W

Battery

Pulse 1 SPECIFICATION

Battery Type Lithium Iron Phosphate - LFP ( LiFeP04)

Battery Voltage 3.2

Battery Voltage Range MPPT Connector XT 60

Capacity 300 W

Energy MPPT Connector XT 60

Max. Charging Current 300 W

Max. Discharge Current 300 W

General

Pulse 1 SPECIFICATION

Ingress Protection IP21

Charging Temperature 0 - 45°C
