IGNACORE SPLV 12-20

Singe-Phase System | Inverter Capacity: 12 kW | Battery Capacity: 20 kWh | Max. PV Input : 12 kW

BDT  635000.00

warranty
Price Disclaimer
IGNACORE Energy Storage System prices may change periodically due to fluctuations in lithium-ion battery costs, exchange rates, and global supply conditions.
Product Delivery Time (maximum)
Inside Dhaka - 2-4 working days & Outside Dhaka - 3-5 working days days
Order Now Relevant Accessories
Ignacore battery products line-up
IGNACORE SPLV 12-20
IGNACORE SPLV 12-20
IGNACORE SPLV 12-20

IGNACORE SPLV 12-20 is a 12kW single-phase hybrid energy storage system featuring a 20.48kWh LiFePO₄ battery pack. This system can effortlessly power all your household appliances, including air conditioners, refrigerators, water pumps, washing machines, elevators, lights, fans, TVs, and kitchen equipment. However,



  • Supports up to 12 kW solar PV input,
  • Simultaneously charges from Grid and solar panels.
  • UPS-level 10ms switching,
  • 200% EPS peak output (24kVA) for 5 seconds. Triple hardware protection for enhanced safety



  • Integrated fire suppression system.
  • IP65 protection – external protection for rain, dust and shock
  • Intelligent energy management for reliable residential and small commercial backup power.


This system is not designed to run heavy industrial machinery, such as large three-phase central air conditioners, high-capacity welding machines, or heavy industrial motors.

City night skyline

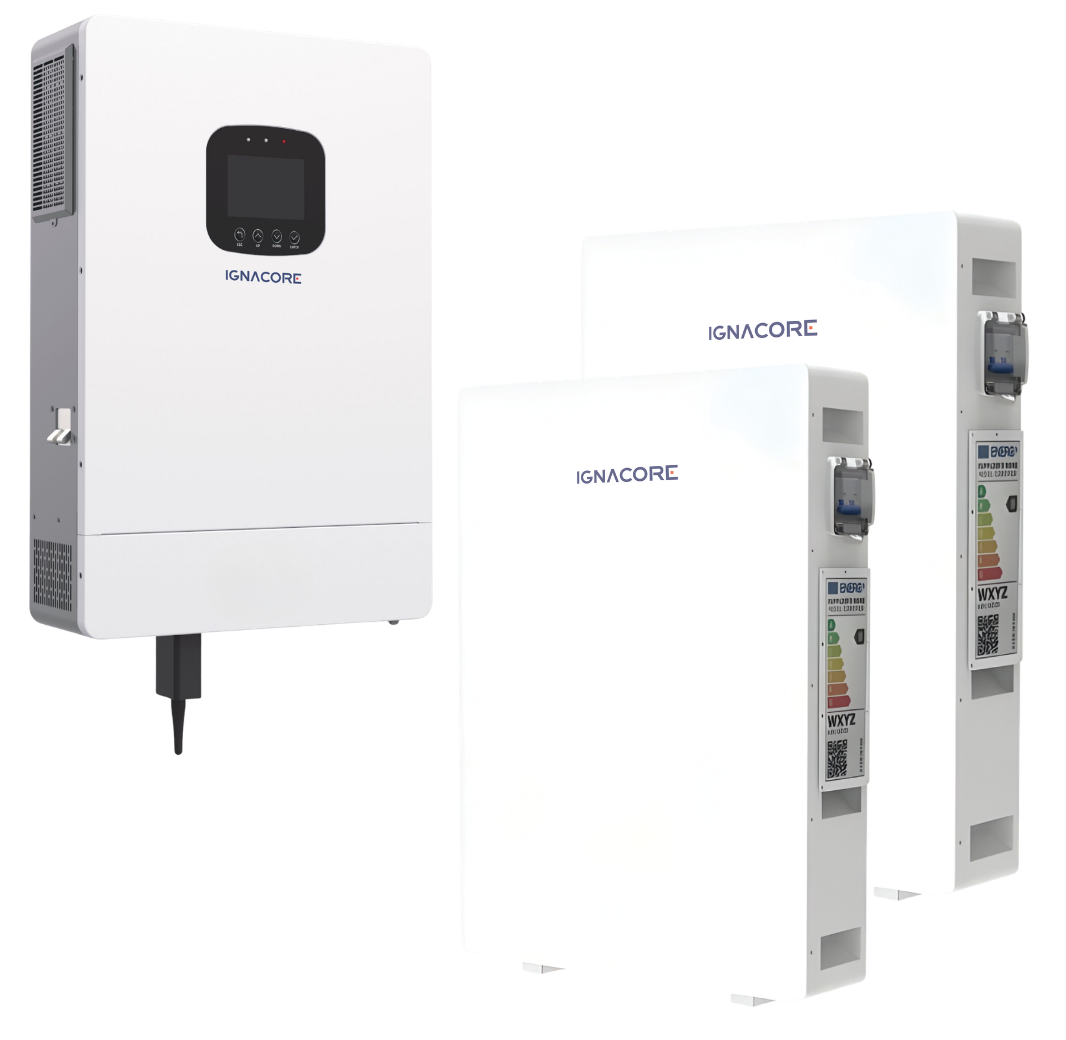

Product Image Product Image

IGNACORE SPLV 12-20

View Data Sheet Download Data Sheet
background
Single Phase Hybrid Energy Storage System (ESS)

IGNACORE SPLV 12-20

The IGNACORE SPLV 12-17 is a 12 kW single-phase hybrid energy storage system with a 16.89 kWh LiFePO₄ battery. It features dual MPPT supporting up to 12 kW solar input, UPS-level 10 ms switching, intelligent battery management, seamless grid and solar integration, and reliable backup power for residential and commercial applications.

12000 W

Output
230 Vac
16.89 kWh LiFePO₄
12000 W
150 A
24000 VA
Inverter: 19.5 kg

Estimated Runtime (16.89 kWh LiFePO₄)

≈33.8h Light Load (500W)

HIGHLIGHTS

12 kW Pure Sine Wave Output
12 kW Pure Sine Wave Output
background

Output

IGNACORE SPLV 12-20 SPECIFICATION
Rated Output Power 12000 W

Input

IGNACORE SPLV 12-20 SPECIFICATION
AC Input Voltage 230 Vac ±5%

Battery

IGNACORE SPLV 12-20 SPECIFICATION
Battery Type Lithium Iron Phosphate (LiFePO₄)

General

IGNACORE SPLV 12-20 SPECIFICATION
Inverter Weight 19.5 kg

Add-on Accessories

Solar Panel & DC Side Installation Kit for 12-20
Solar Panel & DC Side Installation Kit for 12-20
AC Installation Kit for SPLV 12-20
AC Installation Kit for SPLV 12-20
