IGNACORE SPLV 12-17

Singe-Phase System | Inverter Capacity: 12 kW | Battery Capacity: 17kWh | Max. PV Input : 12 kW

BDT  430000.00

warranty
Price Disclaimer
IGNACORE Energy Storage System prices may change periodically due to fluctuations in lithium-ion battery costs, exchange rates, and global supply conditions.

Product Delivery Time (maximum)
Inside Dhaka - 2-4 working days & Outside Dhaka - 3-5 working days days

Ignacore battery products line-up

IGNACORE SPLV 12-17 is a 12kW single-phase hybrid energy storage system featuring a 16.89kWh LiFePO₄ battery pack. This system can effortlessly power all your household appliances, For instance Air Conditioners, Refrigerators, Water Pumps, Washing Machines, Elevators, Lights, fans, TVs, and Kitchen equipment.


  • Supports up to 12 kW solar PV input,
  • Simultaneously charges from Grid and solar panels.
  • UPS-level 10ms switching,
  • 200% EPS peak output (24kVA) for 5 seconds. Triple hardware protection for enhanced safety
Integrated fire suppression system.
Triple hardware protection for enhanced safety
Intelligent energy management for reliable residential and small commercial backup power.


This system is not designed to run heavy industrial machinery, such as large three-phase central air conditioners, high-capacity welding machines, or heavy industrial motors.

City night skyline
Product Image Product Image
background
Single Phase Hybrid Energy Storage System (ESS)

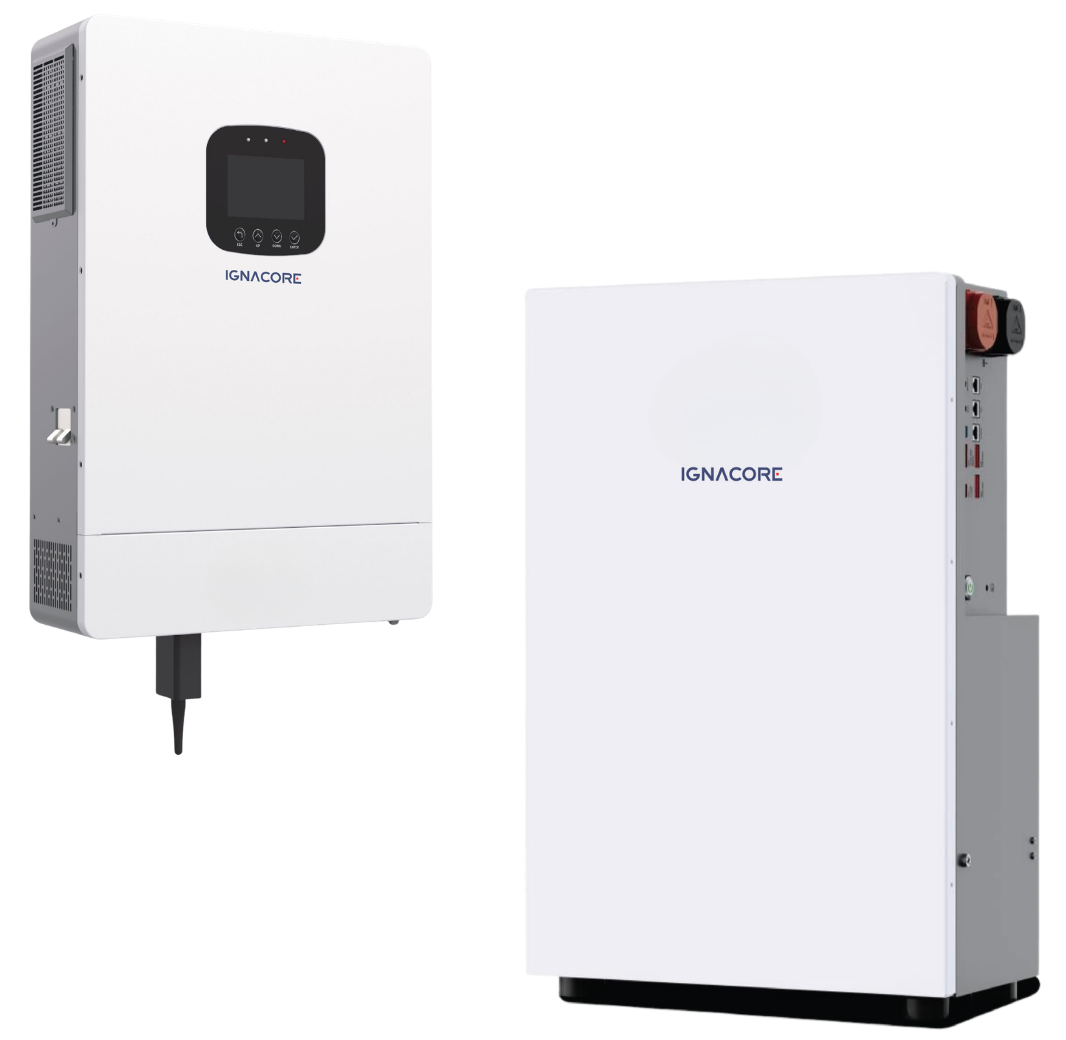

IGNACORE SPLV 12-17

The IGNACORE SPLV 12-17 is a 12 kW single-phase hybrid energy storage system with a 16.89 kWh LiFePO₄ battery. It features dual MPPT supporting up to 12 kW solar input, UPS-level 10 ms switching, intelligent battery management, seamless grid and solar integration, and reliable backup power for residential and commercial applications.

12000 W

Output
230 Vac
16.89 kWh LiFePO₄
12000 W
150 A
24000 VA
9.8 kg+19.5kg

Estimated Runtime (16.89 kWh LiFePO₄)

≈33.8h Light Load (500W)
≈16.9h Home Backup (1000W)

HIGHLIGHTS

16.89 kWh LiFePO₄ Battery
16.89 kWh LiFePO₄ Battery
12 kW Pure Sine Wave Output
12 kW Pure Sine Wave Output
background

Output

IGNACORE SPLV 12-17 SPECIFICATION
Rated Output Power 12000 W

Input

IGNACORE SPLV 12-17 SPECIFICATION
AC Input Voltage 230 Vac ±5%

Battery

IGNACORE SPLV 12-17 SPECIFICATION
Battery Type Lithium Iron Phosphate (LiFePO₄)

General

IGNACORE SPLV 12-17 SPECIFICATION
Inverter Weight 19.5 kg
Inverter Dimensions 540 × 350 × 120 mm
Battery Dimensions 450 × 234 × 674 mm
Installation Floor Standing & Stack
