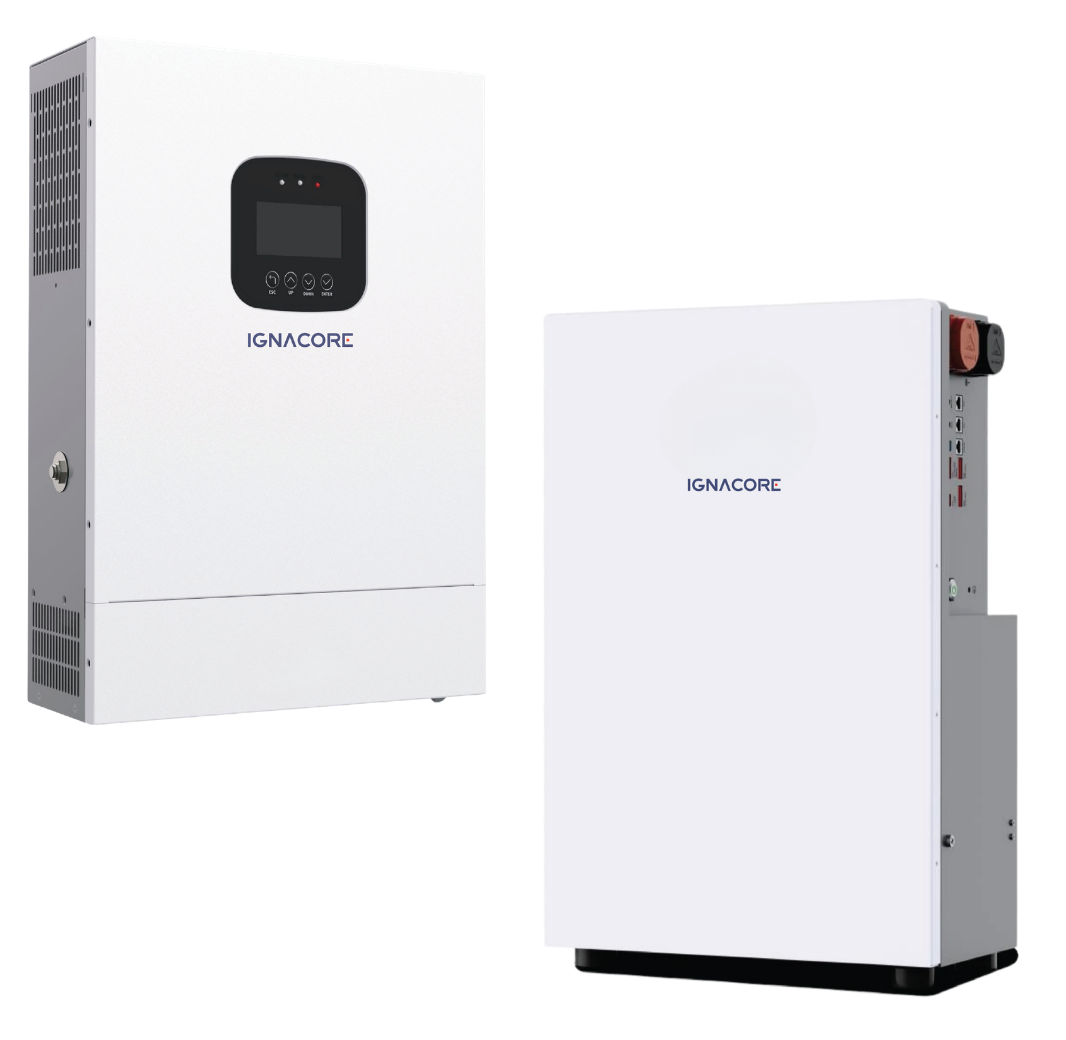

IGNACORE SPLV 6-17

Singe-Phase System | Inverter Capacity: 6 kW | Battery Capacity: 17 kWh | Max. PV Input : 6 kW

BDT 330000.00

Price Disclaimer
IGNACORE Energy Storage System prices may change periodically due to fluctuations in lithium-ion battery costs, exchange rates, and global supply conditions.

Product Delivery Time (maximum)

Inside Dhaka - 2-4 working days & Outside Dhaka - 3-5 working days days

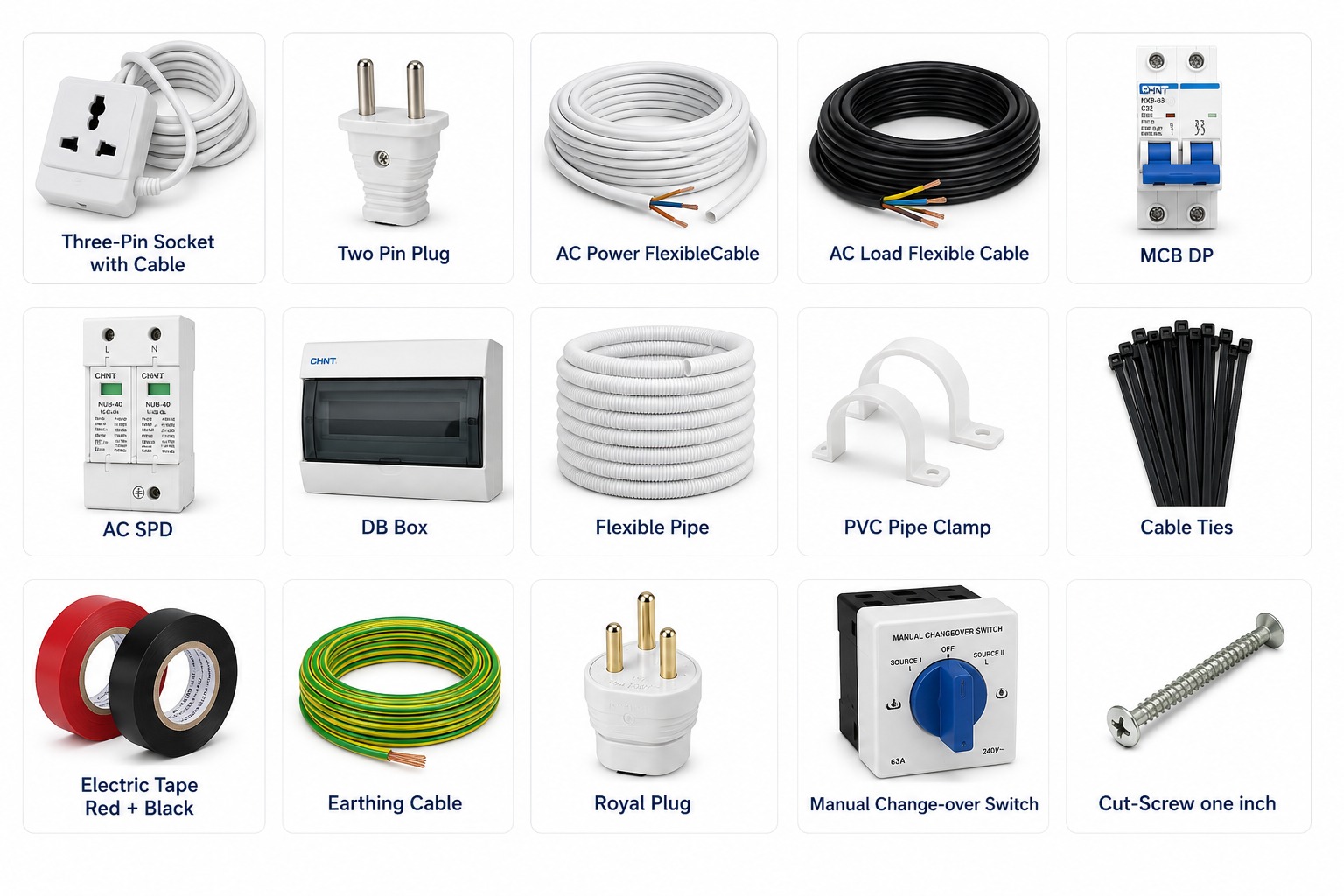

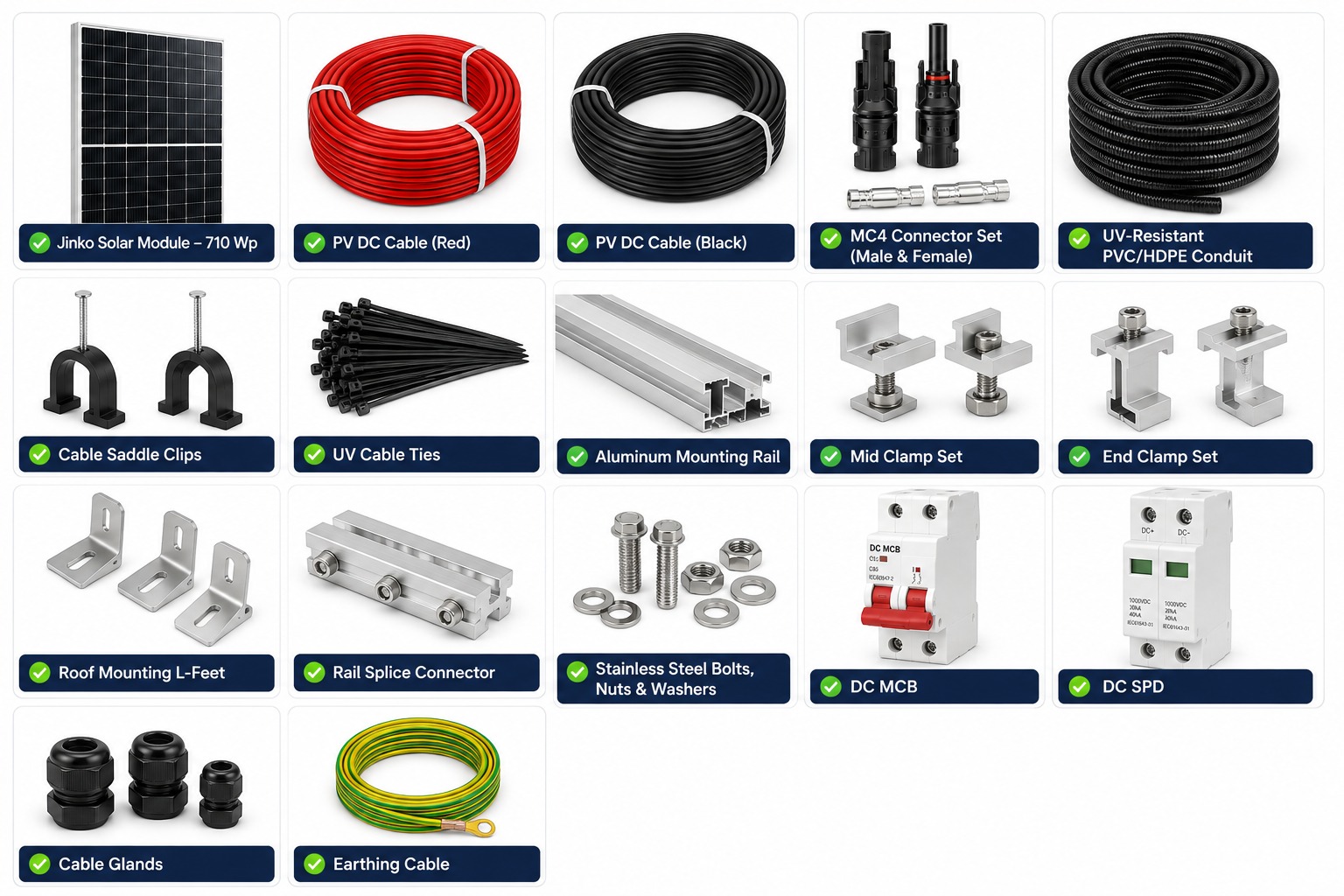

Order Now Relevant Accessories

IGNACORE SPLV 6-17 is a 6.2kW single-phase hybrid energy storage system featuring a 16.89kWh LiFePO₄ battery pack. This system can effortlessly power all your household appliances, including air conditioners, refrigerators, water pumps, washing machines, elevators, lights, fans, TVs, and kitchen equipment.

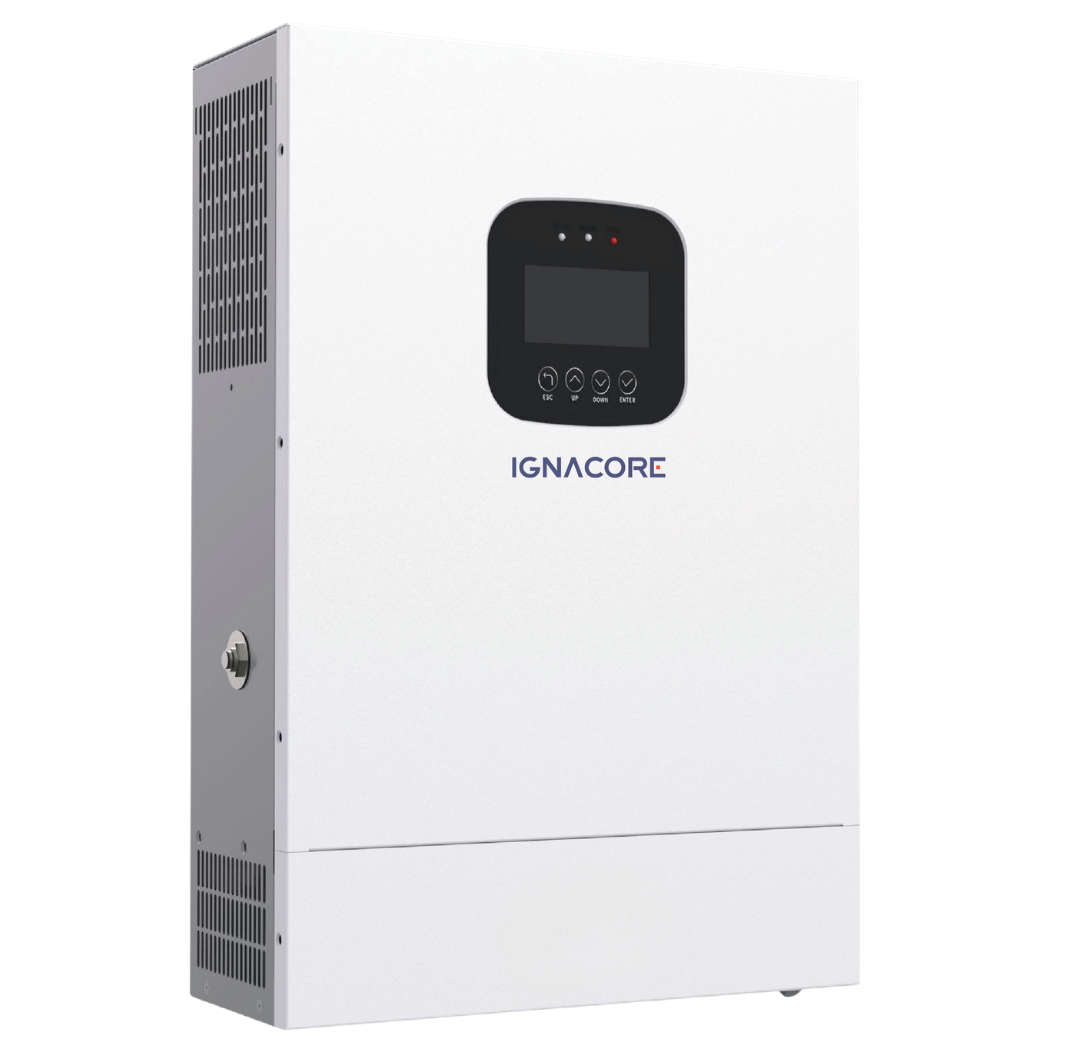

Inverter

Supports up to 6kW solar PV input,
Simultaneously charges from Grid and solar panels.
UPS-level 10ms switching,
Parallel operation of up to six inverters to handle upto 60kw of total load

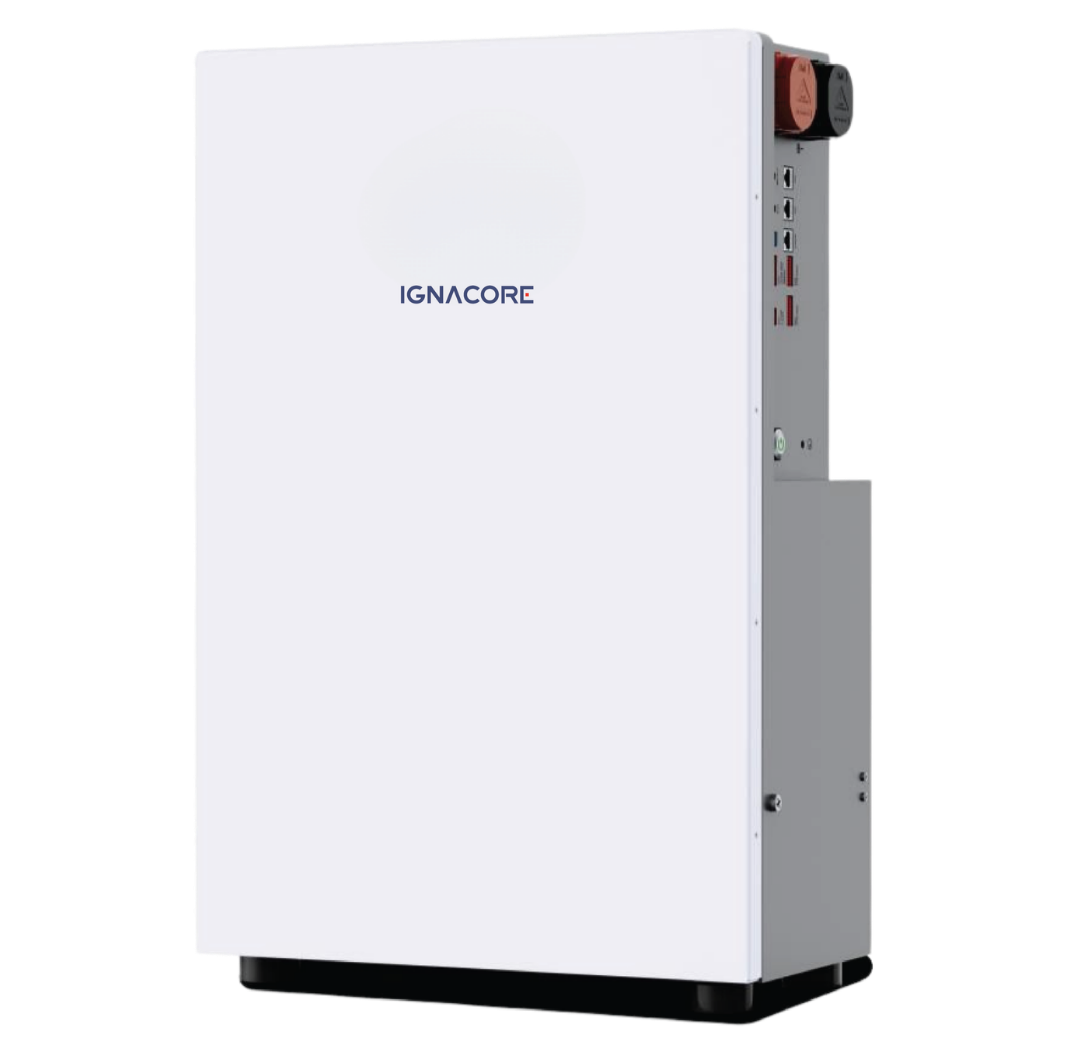

Battery Pack

6,000 life cycles battery
IP20 protection – external protection for rain, dust and shock
Intelligent energy management for reliable residential and small commercial backup power.

This system is not designed to run heavy industrial machinery, such as large three-phase central air conditioners, high-capacity welding machines, or heavy industrial motors.

Single Phase Hybrid Energy Storage System (ESS)

IGNACORE SPLV 6-17

The IGNACORE SPLV 6-17 is a 6.2 kW single-phase hybrid energy storage system with a 16.89 kWh LiFePO₄ battery. It supports grid and solar charging, 6 kW PV input, UPS-level 10 ms switching, parallel operation up to 6 units, intelligent battery management, and reliable backup power for residential and commercial applications.

6200 W

Output

AC OUTPUT

230 Vac, Pure Sine Wave

BATTERY

16.89 kWh LiFePO₄

MAX SOLAR

6000 W

AC CHARGE

80A

OVERLOAD

125–150%: 10 sec;

WEIGHT

7.8 kg

Estimated Runtime (16.89 kWh LiFePO₄)

≈33.8h Light Load (500W)

≈16.9h Home Essentials (1000W)

≈8.4h Medium Load (2000W)

≈5.6h Heavy Load (3000W)

≈2.7h Full Rated Load (6200W)

HIGHLIGHTS

Remote Monitoring & OTA Update

Pure Sine Wave Output

Diesel Generator Compatible

Supports 6 Parallel Inverters

6000W Solar Input

Dual MPPT Solar Input

UPS Switching <10ms

6000 Battery Cycles

16.89kWh LiFePO₄ Battery

6.2kW Hybrid Output

High quality & competitive Price

Designed with a cost-effective approach, a seamlessly integrated minimalist style, and flexible wall-mounted or ground installation options to suit any space.

Ultra Safety Releiability

Built with safe and reliable LFP (Lithium Iron Phosphate) technology, featuring multiple security protection strategies, quick connection, and advanced insulation protection for enhanced performance and safety.

Comprehensive Smart System

Featuring active battery balancing, true parallel operation with RS485 communication, and flexible compatibility for single or parallel use with all 24V hybrid inverters or 2-in-series configuration for all 48V systems.

Leading Technology

Advanced BMS

Output

IGNACORE SPLV 6-17 SPECIFICATION

Rated Output Power 6200 W

Rated Apparent Power 6200 VA

Peak Power 12000 VA

Output Voltage 230 Vac

Output Waveform Pure Sine Wave

Output Frequency 50/60 Hz

Power Factor 1

Input

IGNACORE SPLV 6-17 SPECIFICATION

AC Input Voltage 230 Vac ±5%

AC Input Voltage Range 170–280 Vac

Frequency 50/60 Hz

Maximum PV Open Circuit Voltage 500 Vdc

PV Operating Voltage 120–500 Vdc

MPPT Voltage Range 90–450 Vdc

Maximum PV Input Power 6000 W

Maximum PV Input Current 22 A

PV Charge Current 0–100 A

Battery

IGNACORE SPLV 6-17 SPECIFICATION

Parallel Support Up to 10 Units

Voltage Range 48–56 Vdc

Maximum Discharge Power 12 kW

Battery Cycle Life 6000 Cycles @ 80% DoD

Communication CAN / RS485

Protection Mode Triple Hardware Protection

Fire Suppression Integrated Condensed Aerosol

Protection Over-Current, Over-Voltage, Under-Voltage, Short Circuit, Over-Temperature

Battery Technology Lithium Iron Phosphate (LiFePO₄)

Battery Capacity 16.89 kWh

Nominal Voltage 51.2 Vdc

Rated Capacity 330 Ah

General

IGNACORE SPLV 6-17 SPECIFICATION

Operating Temperature (Discharge) -20°C to 70°C

Storage Temperature -25°C to 60°C

Relative Humidity 0–95% RH (Non-condensing)

Noise ≤60 dB

Cooling Forced Air Cooling (Inverter), Ambient Cooling (Battery)

Communication USB / RS485 / WiFi / GPRS / Dry Contact

Inverter Size(WxDxH) 415 × 280 × 100 mm

Battery Size(WxDxH) 450 × 234 × 674 mm

Operating Temperature (Charge) -10°C to 70°C
