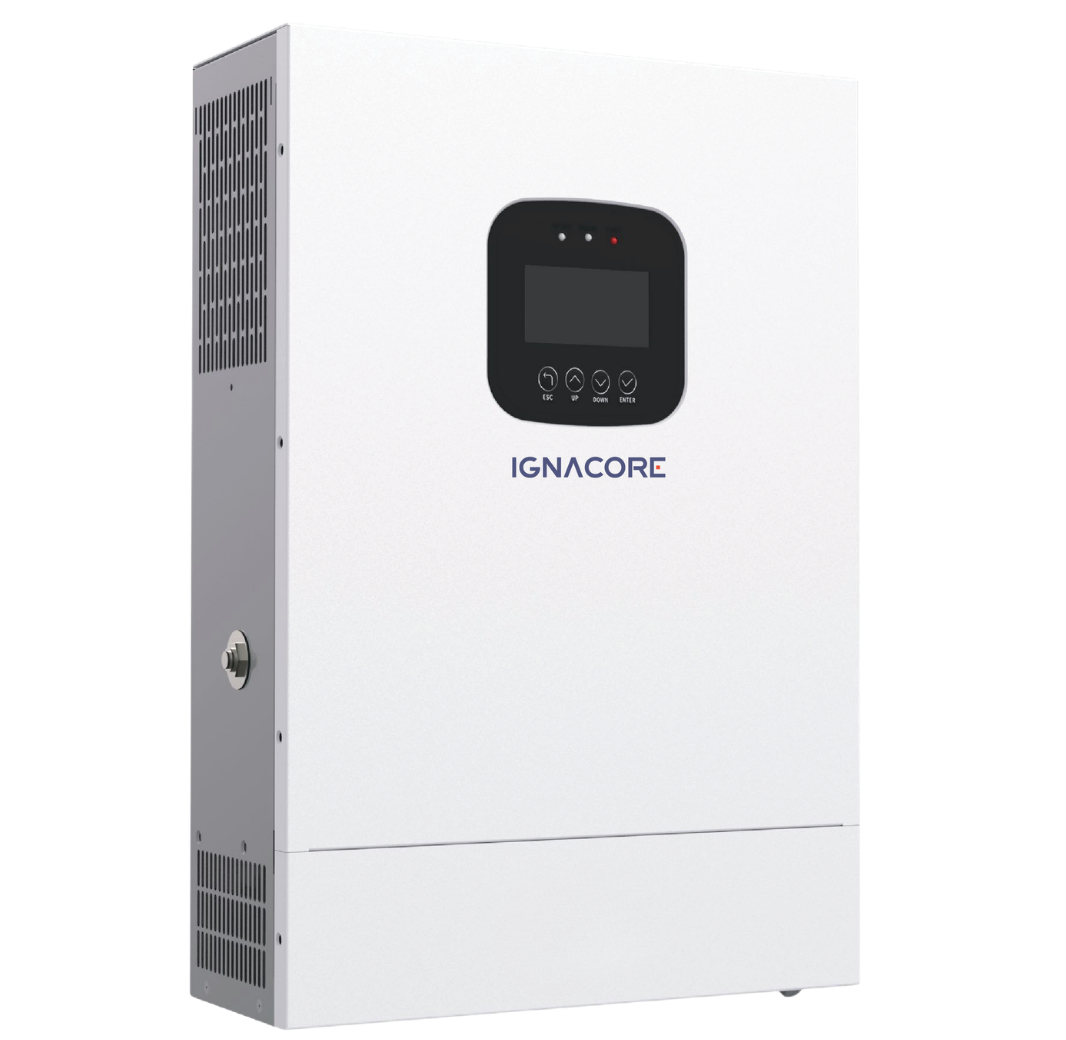

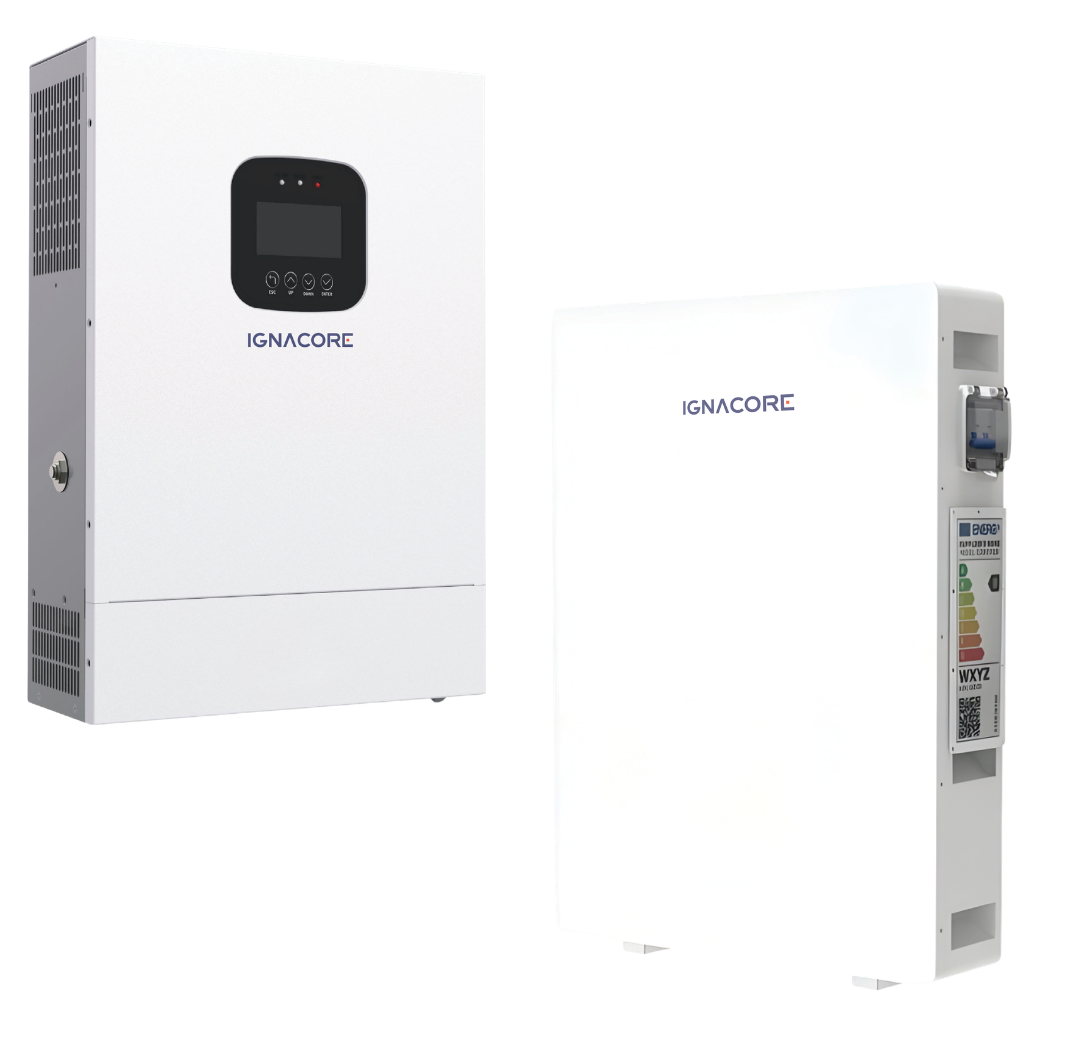

IGNACORE SPLV 6-10

Singe-Phase System | Inverter Capacity: 6 kW | Battery Capacity: 10 kWh | Max. PV Input : 6kW

BDT 290000.00

Price Disclaimer
IGNACORE Energy Storage System prices may change periodically due to fluctuations in lithium-ion battery costs, exchange rates, and global supply conditions.

Product Delivery Time (maximum)

Inside Dhaka - 2-4 working days & Outside Dhaka - 3-5 working days days

Order Now Relevant Accessories

IGNACORE SPLV 6-10 is a 6.2kW single-phase hybrid energy storage system featuring a 10.24kWh LiFePO₄ battery pack. This system can effortlessly power all your household appliances, including air conditioners, refrigerators, water pumps, washing machines, elevators, lights, fans, TVs, and kitchen equipment. However,

Inverter Battery Pack

Supports up to 6kW solar PV input,
Simultaneously charges from Grid and solar panels.
UPS-level 10ms switching,
Parallel operation of up to six inverters to handle upto 60kw of total load

6,000 life cycles battery
IP65 protection – external protection for rain, dust and shock
Intelligent energy management for reliable residential and small commercial backup power.

This system is not designed to run heavy industrial machinery, such as large three-phase central air conditioners, high-capacity welding machines, or heavy industrial motors.

Single Phase Hybrid Energy Storage System (ESS)

IGNACORE SPLV 6-10

IGNACORE SPLV 6-10 is a 6.2kW single-phase hybrid energy storage system featuring a 10.24kWh LiFePO₄ battery with 6,000 life cycles.

6.2 kW

Output

AC OUTPUT

230 Vac, 6.2 kW (6200W),

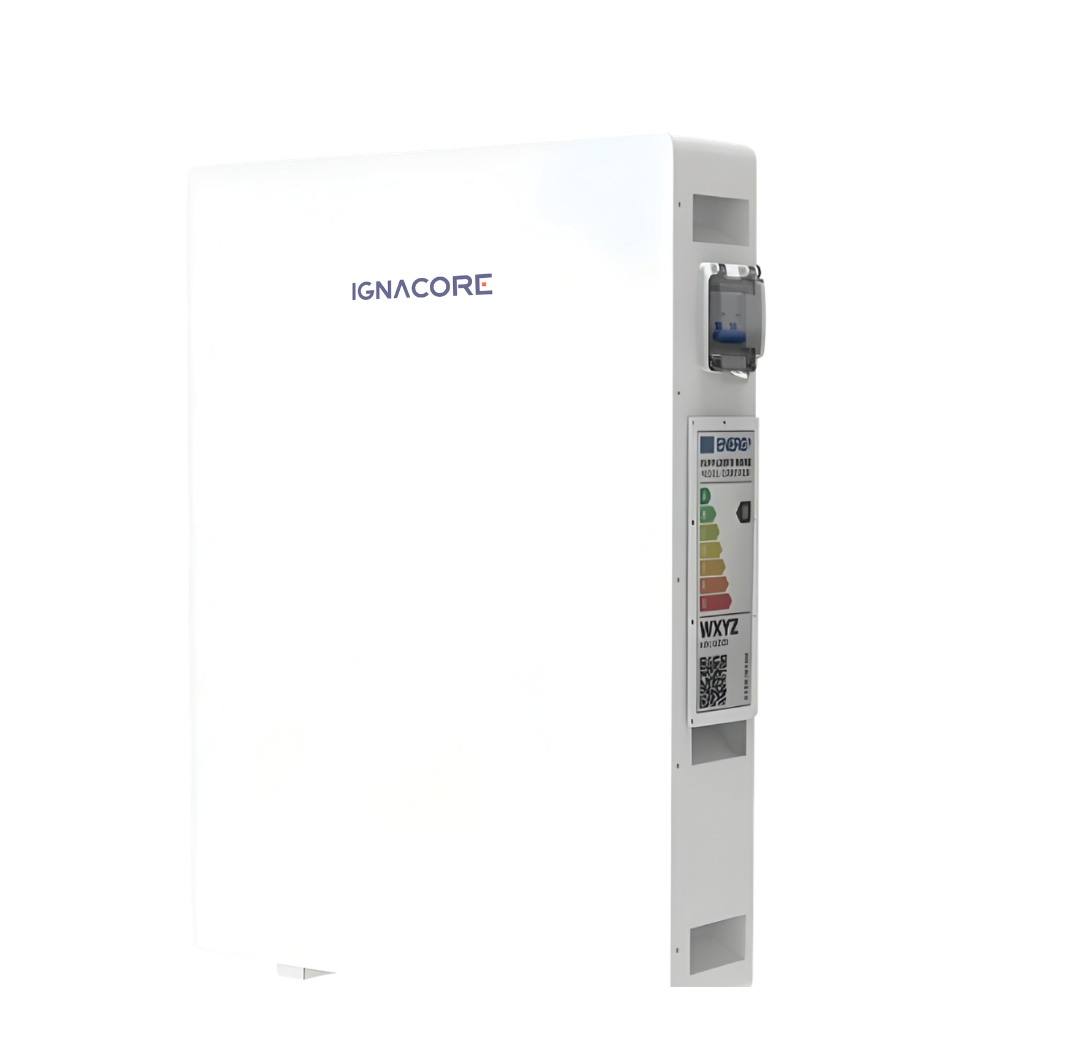

BATTERY

10.24 kWh LiFePO₄ Battery

MAX SOLAR

6kW

AC CHARGE

80 A

OVERLOAD

102–125%: 5 min;

WEIGHT

Inv: 7.8 kg + Battery: 96.5 kg

Estimated Runtime (10.24 kWh LiFePO₄ Battery)

≈20.5h Light Load (500W)

≈10.2h Home Essentials (1000W)

≈5.1h Medium Load (2000W)

≈3.4h Heavy Load (3000W)

≈1.7h Full Rated Load (6200W)

HIGHLIGHTS

Touchscreen LCD Display

Pure Sine Wave Output

Diesel Generator Compatible

Supports 6 Parallel Inverters

6000W Solar Input

IP65 Protection

UPS Switching <10ms

6000 Battery Cycles

10.24kWh LiFePO₄ Battery

6.2kW Hybrid Output

High quality & competitive Price

Designed with a cost-effective approach, a seamlessly integrated minimalist style, and flexible wall-mounted or ground installation options to suit any space.

Ultra Safety Releiability

Built with safe and reliable LFP (Lithium Iron Phosphate) technology, featuring multiple security protection strategies, quick connection, and advanced insulation protection for enhanced performance and safety.

Large capacity

Ultra-long battery life

Safe and durable

A-grade Solid State Lithium Iron Phosphate battery, 6000 cycles

Leading Technology

Advanced BMS

Output

IGNACORE SPLV 6-10 SPECIFICATION

Rated output power 6200VA

Rated Apparent Power 6200 VA

Peak Power 12000 VA

Output Voltage 230 Vac

Output Waveform Pure Sine Wave

Output Frequency 50/60 Hz

Power Factor 1

Load Motor Capability 4 HP

Input

IGNACORE SPLV 6-10 SPECIFICATION

Maximum PV Input Power 6000 W

Maximum PV Input Current 22 A

PV Charge Current 0–100 A

AC Input Voltage 230Vac ±5%

Input Voltage Range 170–280 Vac

Frequency 50/60 Hz

Maximum PV Open Circuit Voltage 500 Vdc

PV Operating Voltage 120–500 Vdc

MPPT Voltage Range 90–450 Vdc

Battery

IGNACORE SPLV 6-10 SPECIFICATION

Battery Technology Lithium Iron Phosphate (LiFePO₄)

Battery Capacity 10.24 kWh

Protection Rating IP65

Cooling Natural Convection

Nominal Voltage 51.2 V

Rated Capacity 200 Ah

Charging Cut-off Voltage 56.16 V

Discharge Cut-off Voltage 44.8 V

Recommended Charge Current 100 A

Maximum Charge Current 200 A

Maximum Continuous Discharge 200 A

Battery Cycle Life 6000 Cycles @80% DoD

General

IGNACORE SPLV 6-10 SPECIFICATION

Operating Temperature -10°C to 55°C (Inverter), -20°C to 60°C (Battery)

Storage Temperature -25°C to 60°C

Humidity 5–95%

Certifications IEC62109-1/2, IEC62619, UN38.3, MSDS, CE

Communication USB / RS485 / WiFi / GPRS / Dry Contact

Parallel Operation 1–6 Inverters

Inverter Size(WxDxH) 415 × 280 × 100 mm

Battery Size(WxDxH) 800 × 590 × 142 mm

Installation Wall Mounted / Floor Stand

Environment Indoor / Outdoor

Noise ≤60 dB

Cooling Forced Air Cooling (Inverter)
