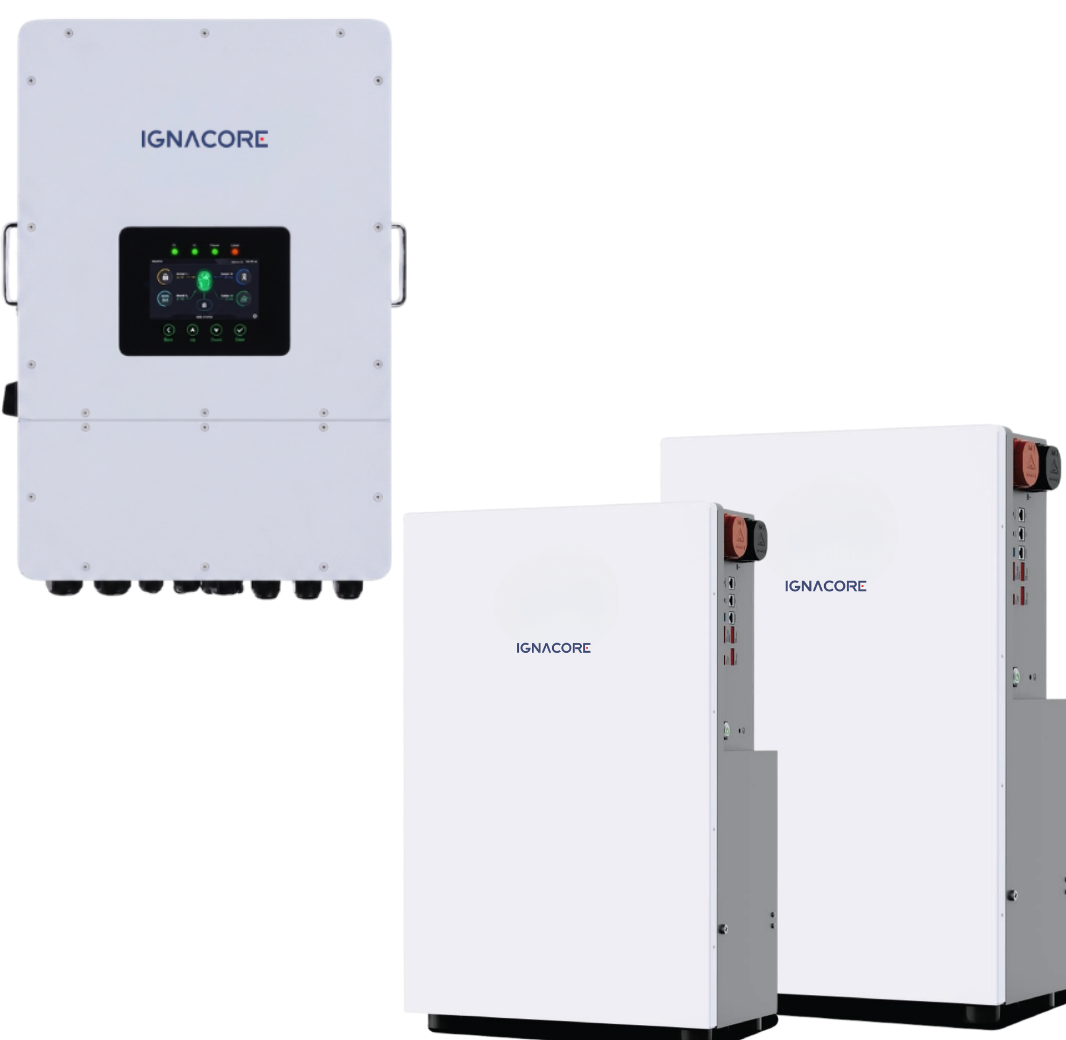

IGNACORE TPLV 12-34 is a 12kW Three-phase hybrid energy storage system featuring a 33.78kWh LiFePO₄ battery pack, designed for large residential and commercial applications requiring extended backup power.

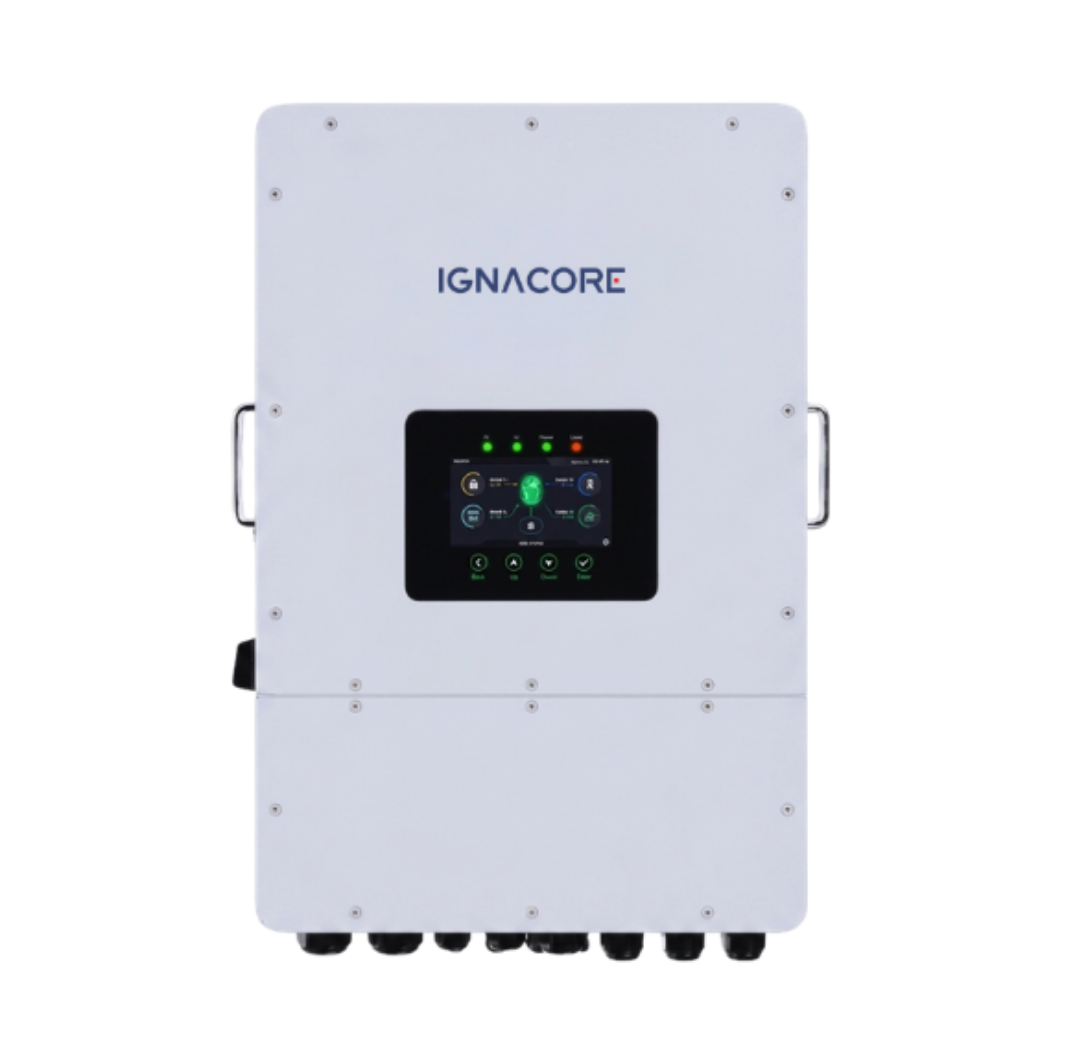

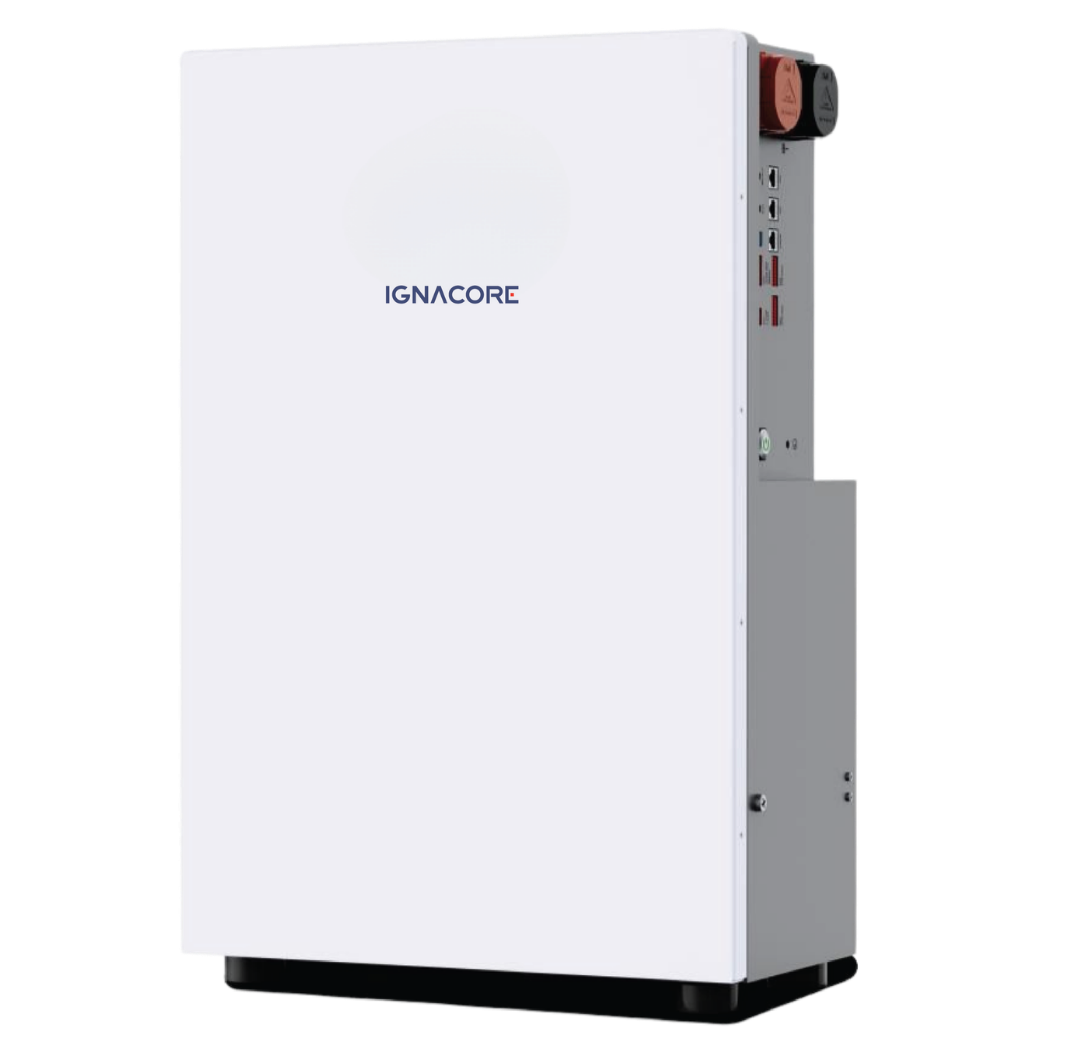

Inverter: | Battery Pack: |
• Supports up to 160% PV oversizing for maximum energy harvest | • 8,000 life cycles battery @ 80% DoD |
• 97.6% maximum efficiency for superior energy conversion | • IP65 protection – external protection for rain, dust and shock |
• <6ms UPS-level switching – fastest in its class | • Triple hardware protection for advanced battery safety |
• 10-unit parallel capability for scalable power up to 120kW | • Integrated condensed aerosol fire suppression system |
• 200% EPS peak power for 10 seconds | • Intelligent energy management for reliable residential and small commercial backup power |
This 12kW system supports all household and commercial appliances including refrigerators, ACs , fans, TVs, computers, washing machines, agricultural pumps, commercial lifts, microwave ovens, and workshop equipment.
IGNACORE TPLV 12-34 is a 12 kW three-phase hybrid energy storage system featuring 33.78 kWh LiFePO₄ battery storage, support for 19.2 kW solar PV input, on-grid/off-grid operation, generator compatibility, UPS-level switchover (<6 ms), IP65 inverter protection, and 6,000-cycle battery life, making it ideal for residential, commercial, and industrial backup power applications.
Designed with a cost-effective approach, a seamlessly integrated minimalist style, and flexible wall-mounted or ground installation options to suit any space.
Built with safe and reliable LFP (Lithium Iron Phosphate) technology, featuring multiple security protection strategies, quick connection, and advanced insulation protection for enhanced performance and safety.
Featuring active battery balancing, true parallel operation with RS485 communication, and flexible compatibility for single or parallel use with all 24V hybrid inverters or 2-in-series configuration for all 48V systems.
Ultra-long battery life
Advanced BMS
