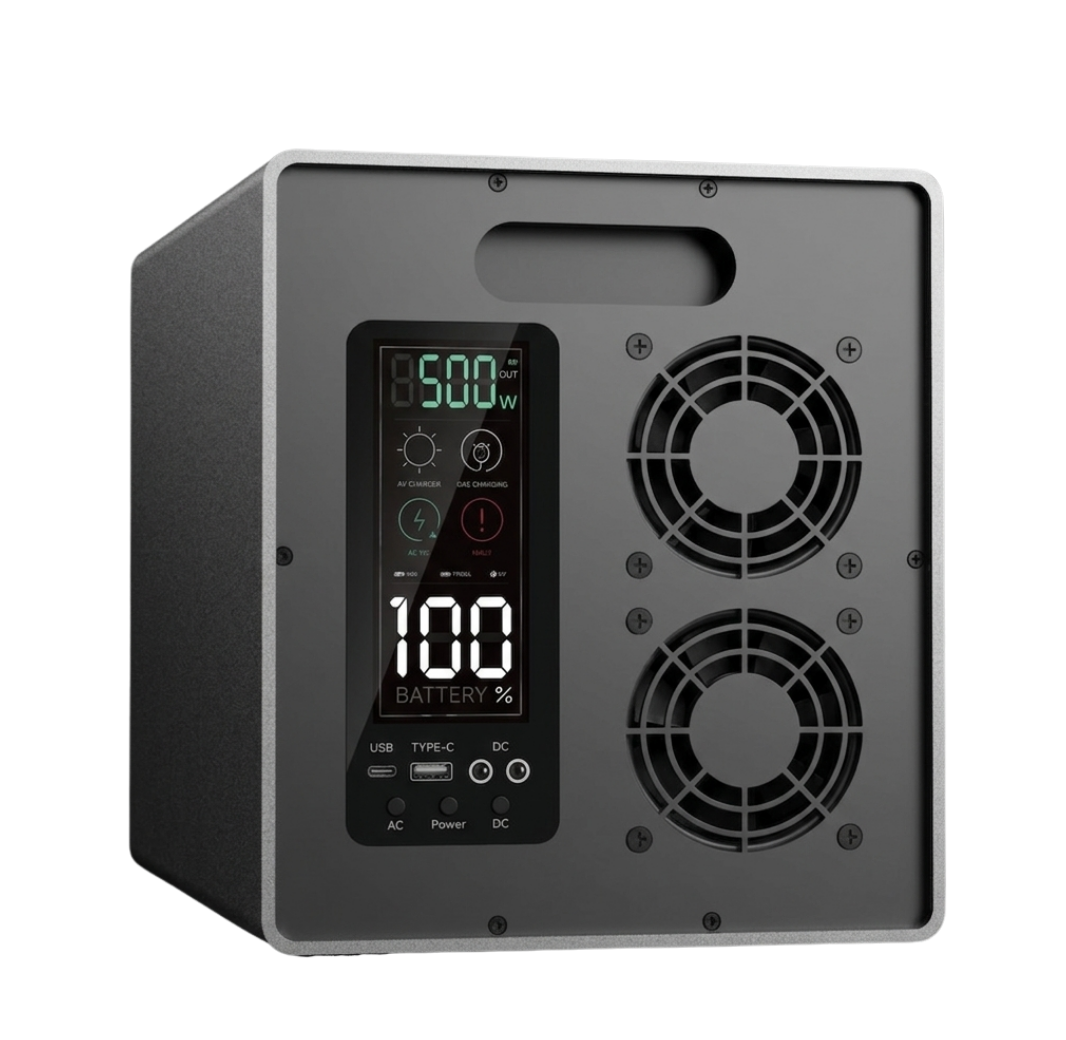

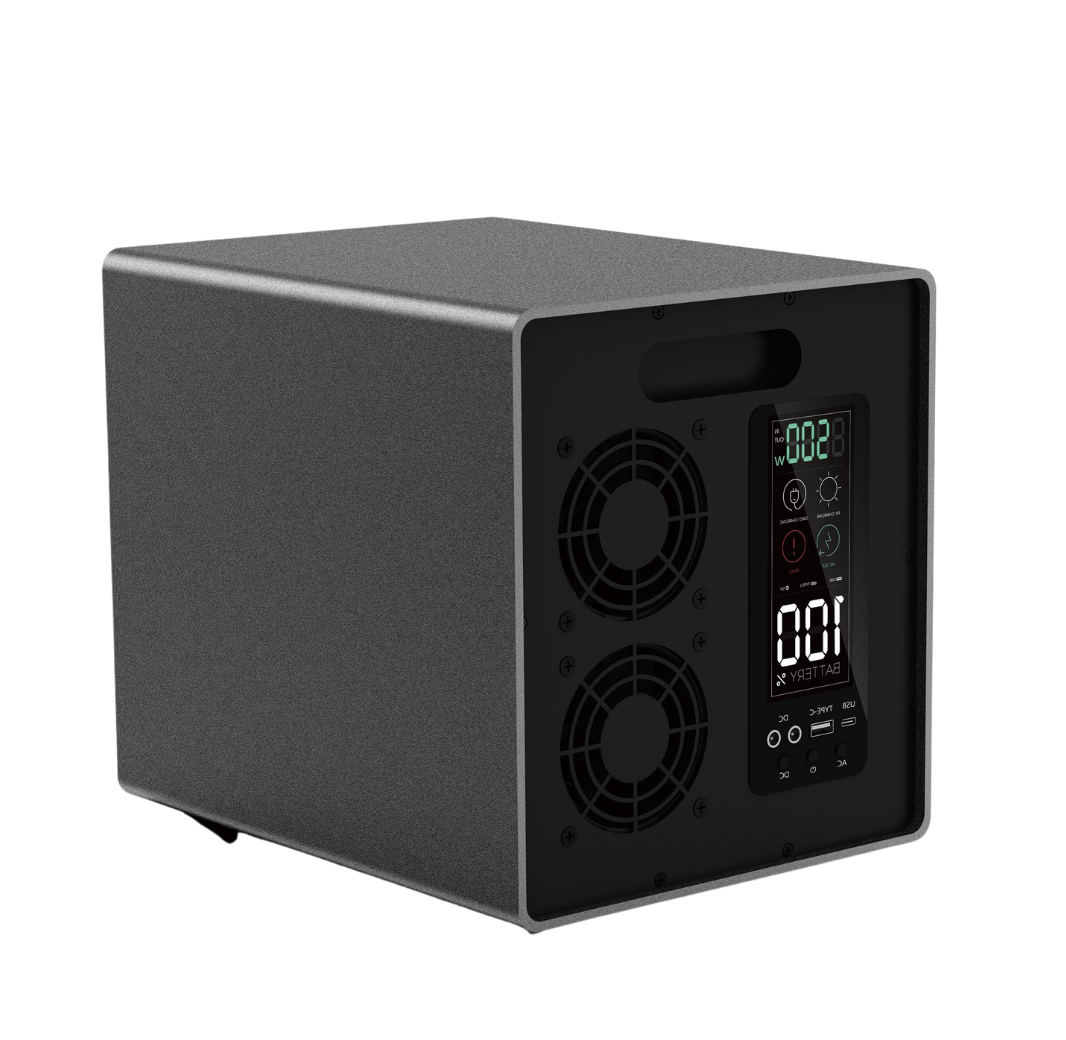

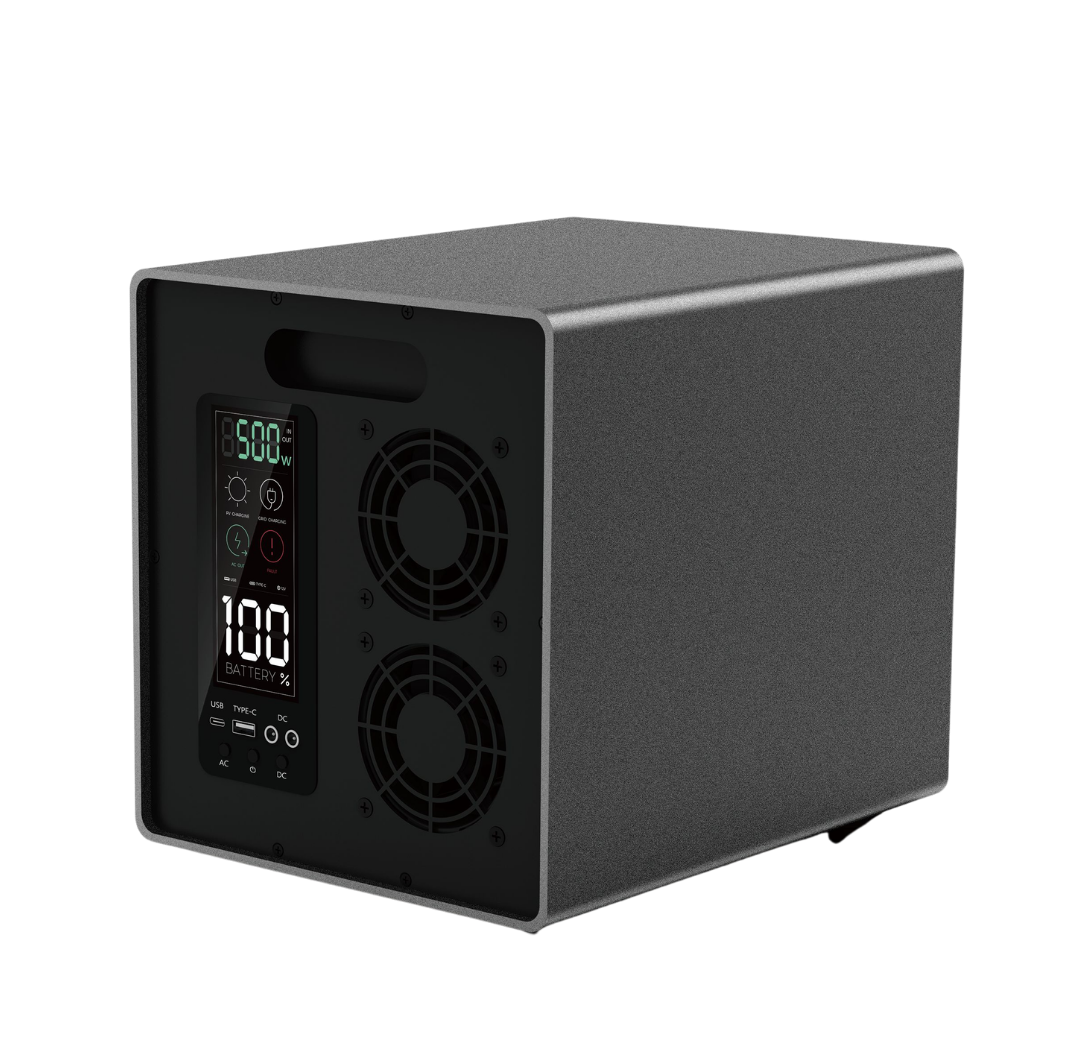

Pulse 2

Inverter Capacity: 1000W | Battery Capacity: 2000 Wh | PV Input Power: 550 W

BDT 65000.00

Price Disclaimer
IGNACORE Energy Storage System prices may change periodically due to fluctuations in lithium-ion battery costs, exchange rates, and global supply conditions.

Product Delivery Time (maximum)

Inside Dhaka - 2-4 working days & Outside Dhaka - 3-5 working days days

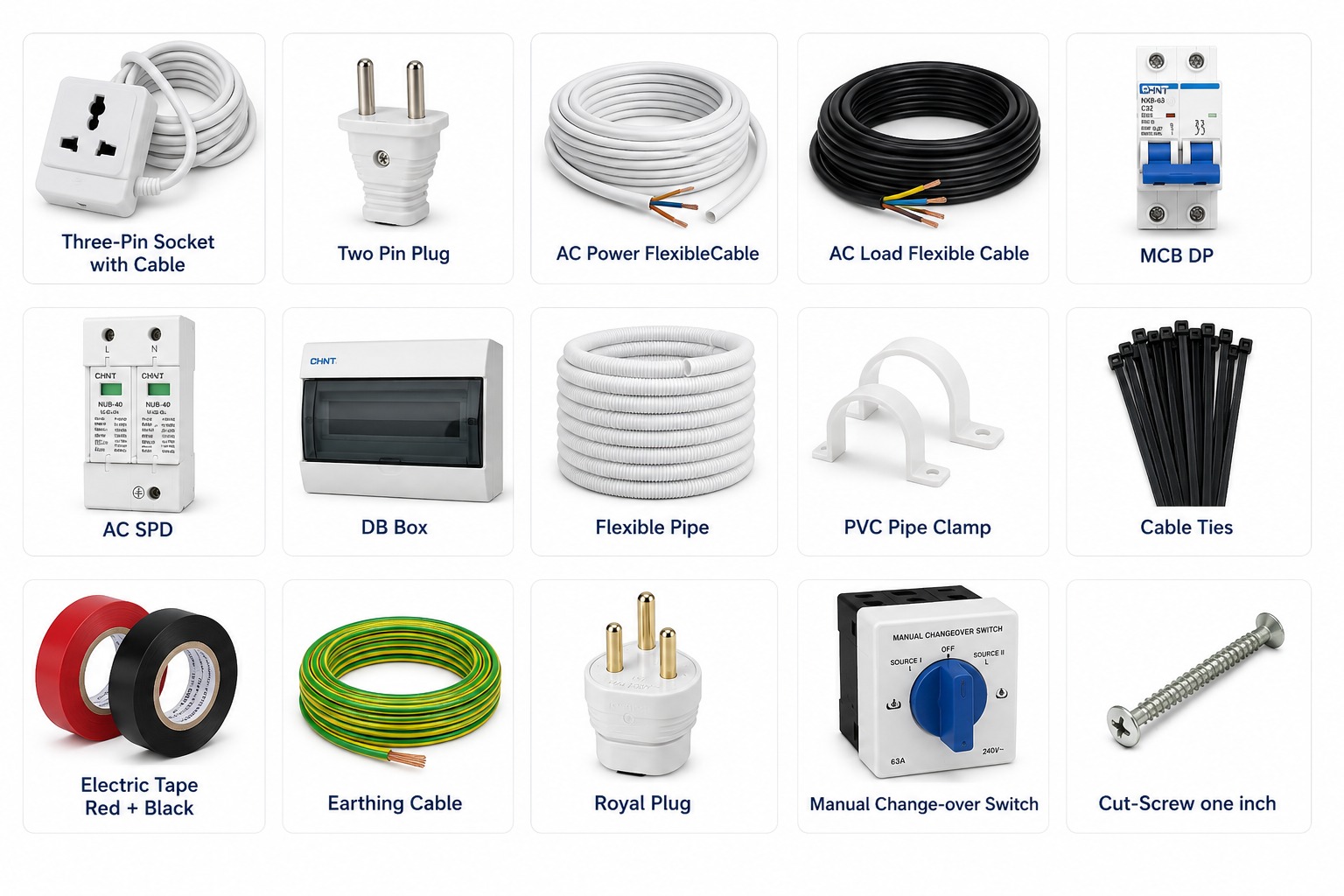

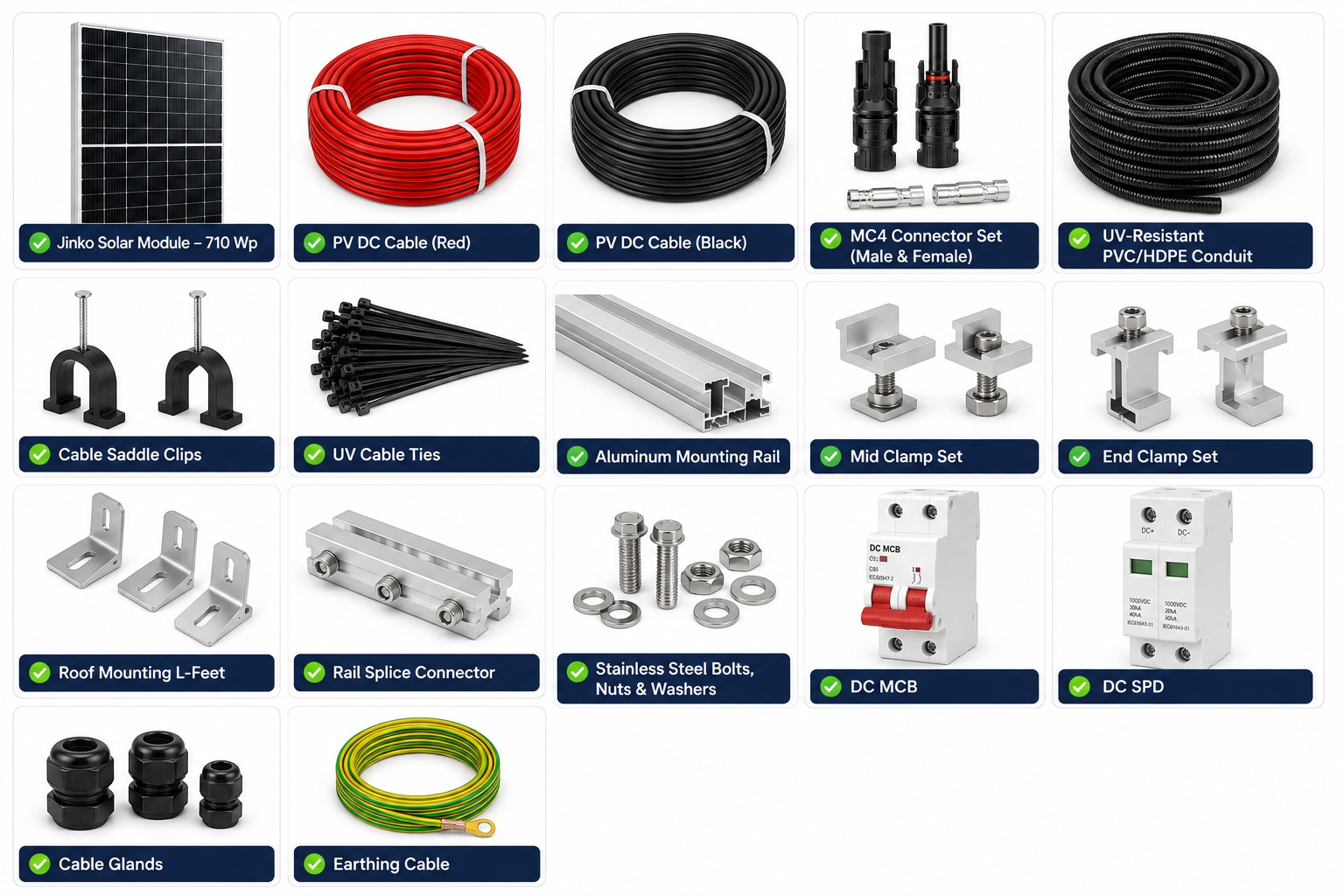

Order Now Relevant Accessories

Pulse-2 is an All-in-One Energy Storage System that consists of a 1000w hybrid Inverter and a built-in 2000wh Battery Pack.

Supports 4-5 Ceiling Fans, 6-8 Lights, one Fridge, Large LED TV and Wifi Router
Simultaneously charges from Grid and solar panels.
UPS-level 10ms switching
8,000 life cycles battery

Tough 2mm Aluminium chassis
Intelligent BMS for smart load management
4 Heat Extraction Fans for optimum battery cooling in Hot, humid area
Perfect for a small house or a shop
2.5 hours backup in 800w load

Portable Solar & Grid Power Box

Pulse 2

1000W Portable Solar & Grid Power Box with 2.009kWh LiFePO₄ battery, 550W MPPT solar input, 1000W AC charging, and 8000-cycle battery life. Suitable for backup power, camping, and emergency use.

1000 W

Output

AC OUTPUT

220–230 Vac

BATTERY

2.009 kWh LiFePO₄

MAX SOLAR

550 W

AC CHARGE

1000 W Max

OVERLOAD

1100 W (10s)

WEIGHT

19 kg

Estimated Runtime (2.009 kWh LiFePO₄)

≈90h LED Lights (20W)

≈30h Laptop (60W)

≈26h Electric Fan (70W)

≈18h Television (100W)

≈12h Desktop Computer (150W)

≈1h Maximum Continuous Load (1000W)

HIGHLIGHTS

Portable All-in-One Design

8000 Battery Cycles

1000W AC Charging

550W MPPT Solar Charging

2.0kWh LiFePO₄ Battery

1000W Rated Output

High quality & competitive Price

Designed with a cost-effective approach, a seamlessly integrated minimalist style, and flexible wall-mounted or ground installation options to suit any space.

Ultra Safety Releiability

Built with safe and reliable LFP (Lithium Iron Phosphate) technology, featuring multiple security protection strategies, quick connection, and advanced insulation protection for enhanced performance and safety.

Comprehensive Smart System

Featuring active battery balancing, true parallel operation with RS485 communication, and flexible compatibility for single or parallel use with all 24V hybrid inverters or 2-in-series configuration for all 48V systems.

Large capacity

Ultra-long battery life

Ultra-high power

5000W (Peak 5500W), Covers 99% of power tools

Safe and durable

A-grade Solid State Lithium Iron Phosphate battery, 6000 cycles

Leading Technology

Advanced BMS

Output

Pulse 2 SPECIFICATION

Rated Voltage 220 - 230 Vac

Rated Power 1000 W

Overload Power 1100 W (10 sec)

Frequency 50/60 Hz

USB-A Output 5V DC, 2.4A Max (QC3.0 up to 18W)

USB-C Output 5V DC, 2.4A Max (QC3.0 up to 18W)

12V DC Output 12V DC, 10A Max (120W Max)

Input

Pulse 2 SPECIFICATION

AC Charging Input 90 - 280 Vac, 45 ? 65 HZ, 500 W max

MPPT Voltage Range 11–55 Vdc

PV Input Connector XT60

Maximum Solar Input 550 W

Battery

Pulse 2 SPECIFICATION

Battery Type Lithium Iron Phosphate - LFP ( LiFeP04)

Battery Voltage 6.4 Vdc

Battery Voltage Range 6.0–7.3 Vdc

Capacity 314 Ah

Cycle Life 8000 Cycles

General

Pulse 2 SPECIFICATION

Warranty 3 Years

Ingress Protection IP21

Charging Temperature 0–45°C

Discharging Temperature -10–45°C

Dimensions 233 × 255 × 300 mm

Net Weight 19 kg

Certification CE / RoHS / SAA / FCC / PSE

Pulse 2
