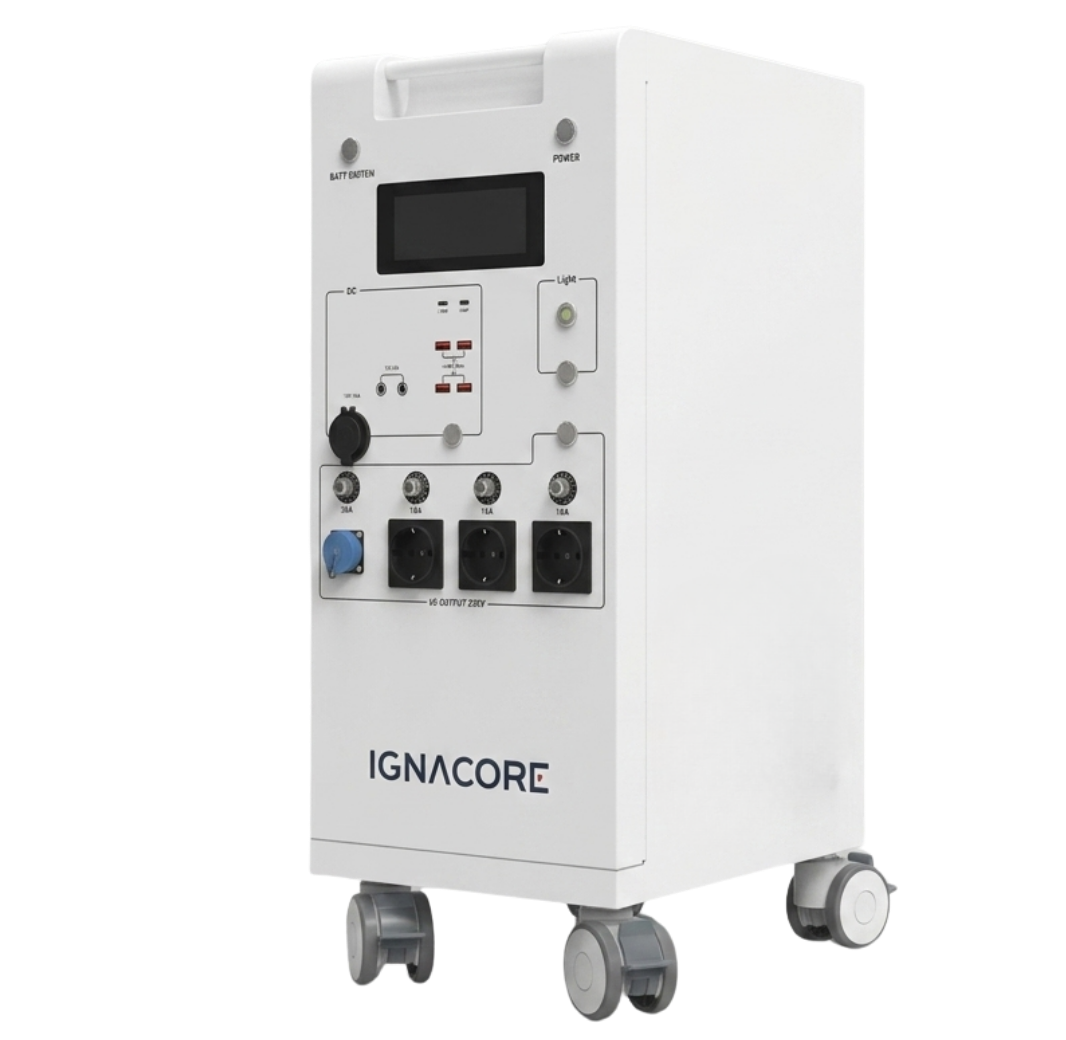

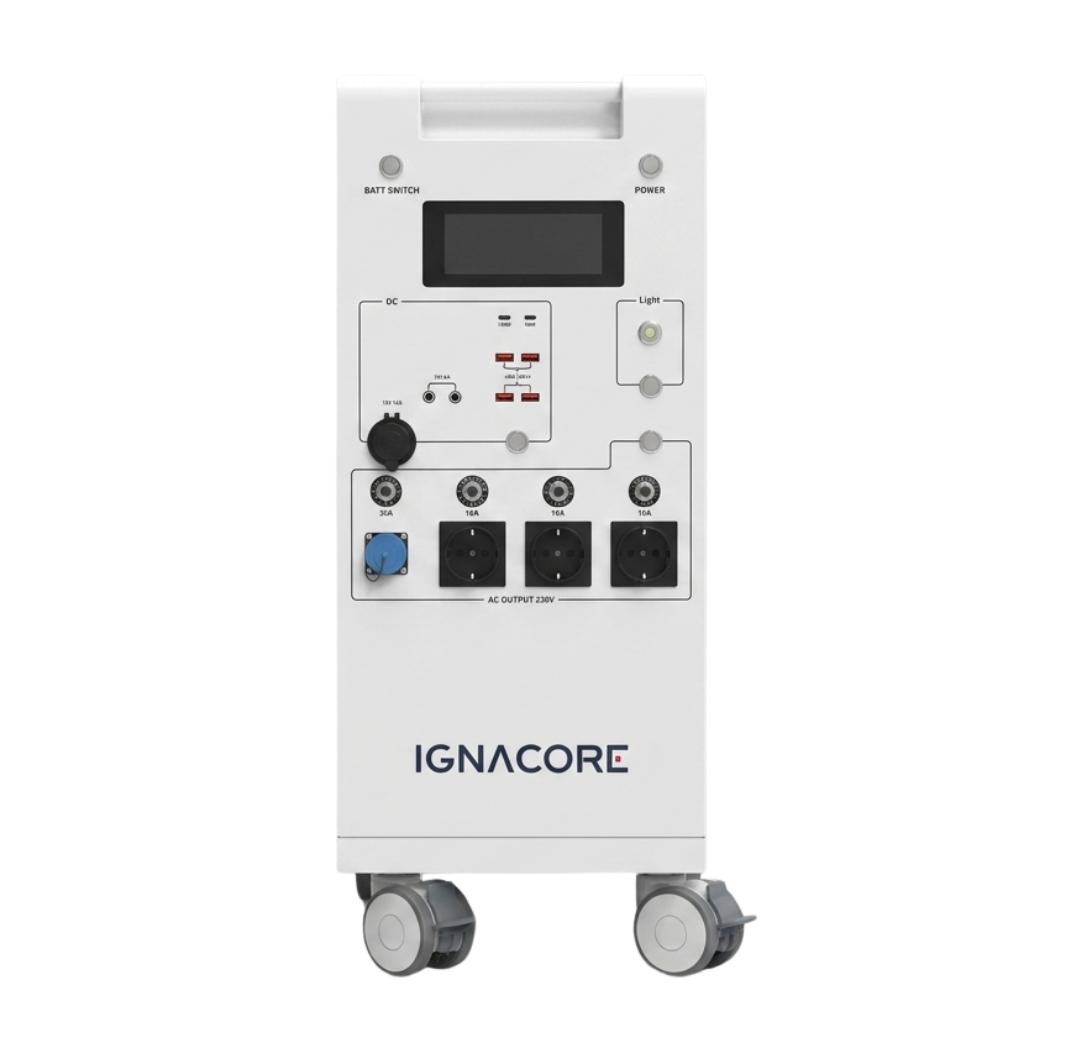

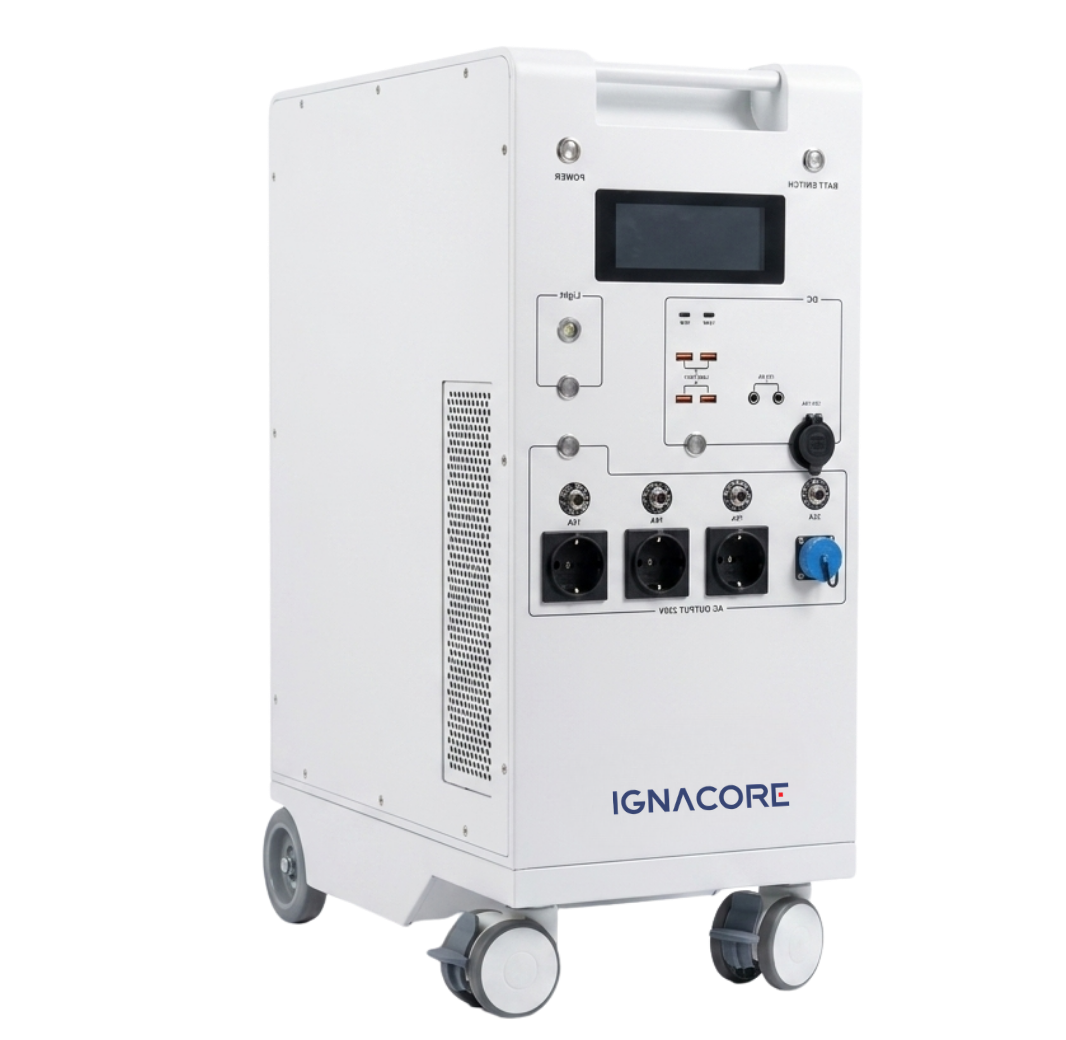

PortaCore-5

Inverter Capacity: 5 kW | Battery Capacity: 5 kWh | Max. PV Input Power: 6 KWh

BDT 225000.00

Price Disclaimer
IGNACORE Energy Storage System prices may change periodically due to fluctuations in lithium-ion battery costs, exchange rates, and global supply conditions.

Product Delivery Time (maximum)

Inside Dhaka - 2-4 working days & Outside Dhaka - 3-5 working days days

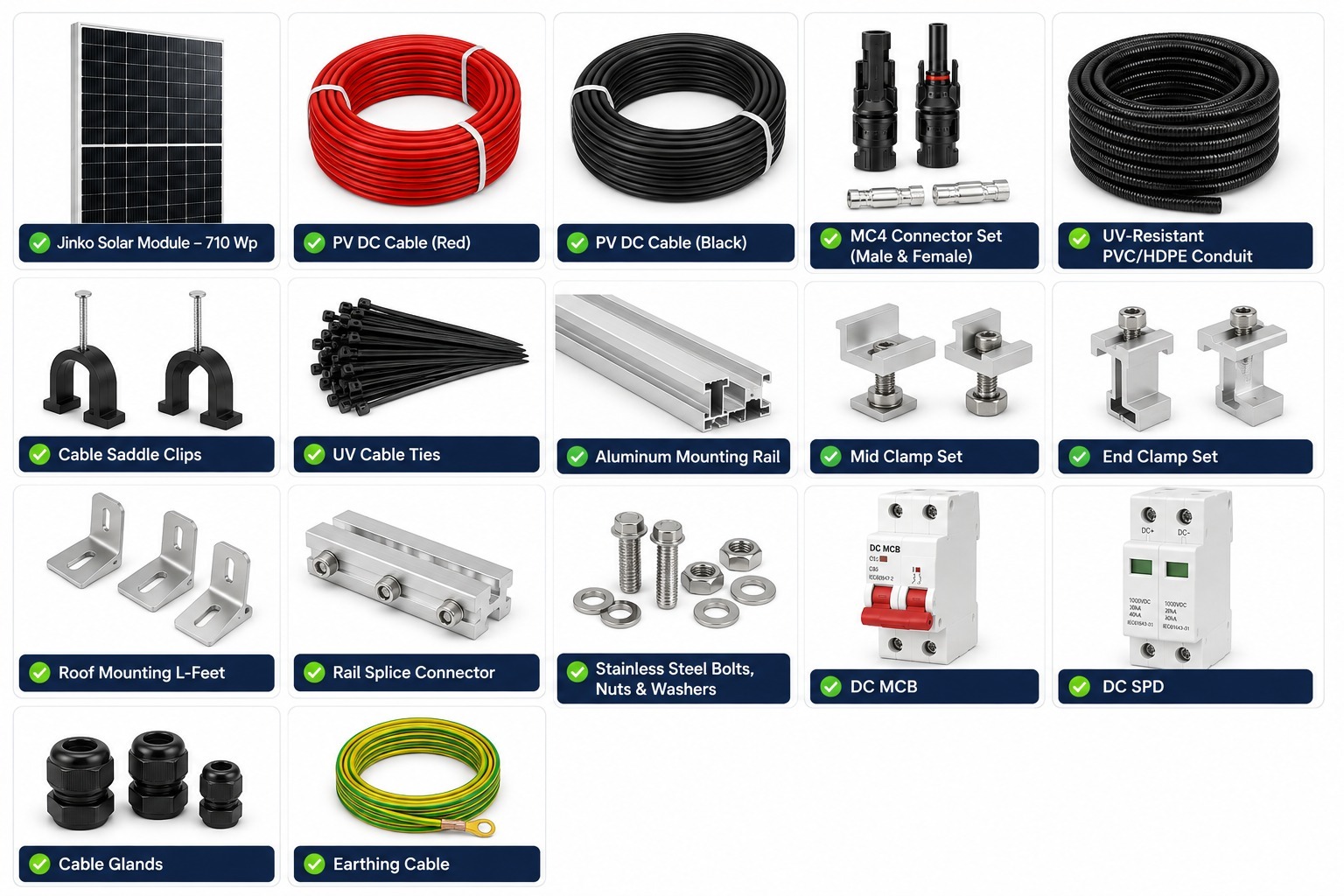

Order Now Relevant Accessories

PortaCore-5 is an All-In-One Energy Storage System that consists of a 5 kw hybrid Inverter, a built-in 5 kwh Battery Pack including Solar Support. Ideal for houses, small businesses, school/madrasa or masjids (mosques) that might have slightly high loads but require shorter backup and vice versa.

. Supports 5-7 Ceiling Fans, 8-10 Lights, Wi-fi Router, 1-2 Fridge, up to 75” LED TV, 1 Electric Stove, 1-2 HP Water pump and two 1-Ton AC.

. Simultaneously charges from Grid and solar panels.

. UPS-level 10ms switching

. 6,000 life cycles battery.

. Connect up to 6000w of Solar Panels to lower your monthly electricity bill.

. Intelligent BMS for smart load management

. Perfect for a small house or a large shop

. 1.25 hours power backup in 4000w load, 5 hours in 1000w load.

Water Pump. Electric stove and Inverter AC are not be operated simultaneously

Portable Energy Storage System (Portable ESS)

PortaCore-5

Portable all-in-one Energy Storage System featuring a 5kW inverter, 5.12kWh LiFePO₄ battery, 6000-cycle battery life, 6kW solar input, intelligent BMS, Bluetooth & Wi-Fi connectivity, silent operation, and fast AC charging. Suitable for home backup, outdoor work, and portable power applications.

5 kW (Peak 5.5 kW)

Output

AC OUTPUT

230 VAC

BATTERY

LiFePO₄ (Semi Solid State)

MAX SOLAR

6 kW

AC CHARGE

2500 W

OVERLOAD

5.5 kW

WEIGHT

60 kg

Estimated Runtime (LiFePO₄ (Semi Solid State))

≈6h Essential Night (67W)

HIGHLIGHTS

Bluetooth & Wi-Fi Connectivity

Built-in Automatic Fire Extinguishing

Intelligent Battery Management System

Fast AC Charging (2500W)

6kW Solar Input

6000 Cycle LiFePO₄ Battery

5000W Rated Output (5500W Peak)

5.12kWh Large Capacity

High quality & competitive Price

Designed with a cost-effective approach, a seamlessly integrated minimalist style, and flexible wall-mounted or ground installation options to suit any space.

Ultra Safety Releiability

Built with safe and reliable LFP (Lithium Iron Phosphate) technology, featuring multiple security protection strategies, quick connection, and advanced insulation protection for enhanced performance and safety.

Comprehensive Smart System

Featuring active battery balancing, true parallel operation with RS485 communication, and flexible compatibility for single or parallel use with all 24V hybrid inverters or 2-in-series configuration for all 48V systems.

Leading Technology

Advanced BMS

Output

PortaCore-5 SPECIFICATION

Rated AC Output Power 5 kW

Peak Output Power 5.5 kW

Rated Energy 5.12 kWh

THDI <3%

Rated Grid Voltage 230 VAC

Grid Voltage Range 176–270 VAC

Grid Frequency 50Hz (45–54Hz) / 60Hz (55–65Hz)

Input

PortaCore-5 SPECIFICATION

Maximum Solar PV Input Power 6 kW

MPPT Voltage Range 120–420 V

Maximum Solar PV Voltage 500 V

Maximum Solar PV Charging Current 80 A (Default 60 A)

Max. Solar PV Voltage Voc 500 VDC

Solar PV Efficiency <99.2%

Solar PV Interface MC4 ×1

Solar PV Voltage Accuracy ±2V

Battery

PortaCore-5 SPECIFICATION

Battery Type LiFePO₄ (Semi Solid State)

Battery Life 6000 Cycles

Rated Voltage 51.2 V

Capacity 100 Ah

Energy Capacity 5.12 kWh

Rated Charging Current 50 A

Maximum Charging Current 80 A

General

PortaCore-5 SPECIFICATION

Operating Temperature -20°C to 50°C

Dimensions (W×D×H) 700 × 424 × 482 mm

Operating Temperature Range -20°C to 50°C

Connectivity Bluetooth & Wi-Fi

Maximum Operating Altitude 2000 m

Weight 60 kg

Output Interface 2 × Type-C (60W/100W), 2 × DC 12V/5A, 4 × USB-A (60W/100W), 1 × Car Output (12V/10A)
